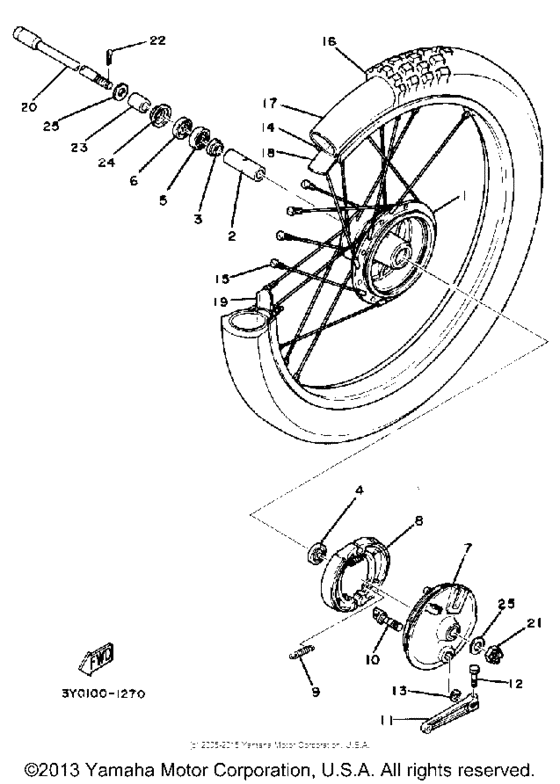

Front wheel Diagram Yamaha TT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23X-25111-00-98
Hub, Front
|
23X-25111-00-98 |
— | ||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
4
|
4
93306-20226-00 Bearing |
93306-20226-00 |
from US $15.26 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
6
|
6
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
7
|
7
1W1-25016-11-98
Brake Shoe Plt Assembly (1W1-25
1W1-25 LOW GLOSS BLK |
1W1-25016-11-98 |
— | ||
|
8
|
8
322-W2535-00-00 Brake Shoe Kit |
322-W2535-00-00 |
from US $41.19 |
||
| replacement | |||||
|
8
|
8
322-W253A-10-00 PISTON 1 O/S 0.25 |
322-W253A-10-00 |
from US $41.42 |
||
|
9
|
9
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
10
|
10
23X-25151-00-00
Camshaft
|
23X-25151-00-00 |
— | ||
|
11
|
11
322-25155-00-00
Lever, Camshaft 1
|
322-25155-00-00 |
— | ||
|
12
|
12
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.52 |
||
|
13
|
13
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
14
|
14
944-16212-34-00
Rim 1.60X21
1.60X21 |
944-16212-34-00 |
— | ||
|
15
|
15
2W6-25104-02-00
Spoke Set, Front
|
2W6-25104-02-00 |
— | ||
|
16
|
16
941-09212-F8-00
90/90-21 M2Ea-Tt
M2EA-TT INOUE |
941-09212-F8-00 |
— | ||
|
17
|
17
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 |
942-27211-23-00 |
US $54.59 |
||
|
18
|
18
94330-21084-00 Band, Rim (1.60-21)1.60-21 |
94330-21084-00 |
from US $4.39 |
||
|
19
|
19
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
20
|
20
1W1-25181-01-00 Axle, Wheel |
1W1-25181-01-00 |
from US $42.82 |
||
|
21
|
21
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
21
|
21
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
|
22
|
22
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
22
|
22
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.25 |
||
|
23
|
23
90387-15600-00 Collar |
90387-15600-00 |
from US $10.06 |
||
|
24
|
24
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
25
|
25
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
