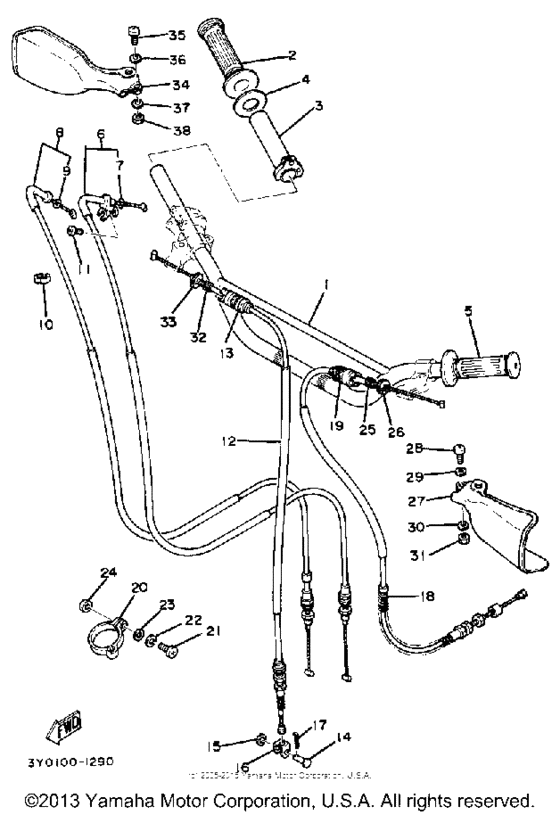

Steering handle - cable Diagram Yamaha TT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
1A0-26242-01-00 Grip Rh (R.h.)RH R.H. |
1A0-26242-01-00 |
from US $10.44 |
||
|
3
|
3
3Y1-26243-01-00 Tube,throttle Guide |
3Y1-26243-01-00 |
from US $21.39 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
3Y1-26311-00-00 Cable, Throttle 1 |
3Y1-26311-00-00 |
from US $49.54 |
||
|
7
|
7
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
8
|
8
53R-26312-00-00 Cable, Throttle 2 (3Y1-26312-003Y1-26312-00 |
53R-26312-00-00 |
from US $49.45 |
||
|
9
|
9
93210-08408-00
O-Ring
|
93210-08408-00 |
— | ||
|
10
|
10
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
11
|
11
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
11
|
11
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
3Y0-26341-00-00
Cable, Brake
|
3Y0-26341-00-00 |
— | ||
|
13
|
13
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
14
|
14
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
15
|
15
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
16
|
16
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
17
|
17
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
18
|
18
3Y0-26335-00-00 Cable, clutch |
3Y0-26335-00-00 |
from US $59 |
||
|
19
|
19
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
20
|
20
3Y1-26397-00-00
Band
|
3Y1-26397-00-00 |
— | ||
|
21
|
21
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
21
|
21
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
22
|
22
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
23
|
23
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
23
|
23
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
23
|
23
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
24
|
24
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
25
|
25
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
25
|
25
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
26
|
26
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
26
|
26
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
27
|
27
3Y0-26141-00-00
Guard, Brush 1
WHITE |
3Y0-26141-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
WHITE |
999-99999-99-00 |
— | ||
|
28
|
28
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
28
|
28
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
29
|
29
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
30
|
30
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
31
|
31
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
31
|
31
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
32
|
32
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
32
|
32
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
33
|
33
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
33
|
33
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
34
|
34
3Y0-26142-00-00
Guard, Brush 2
WHITE |
3Y0-26142-00-00 |
— | ||
|
35
|
35
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
35
|
35
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
36
|
36
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
37
|
37
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
38
|
38
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
38
|
38
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
