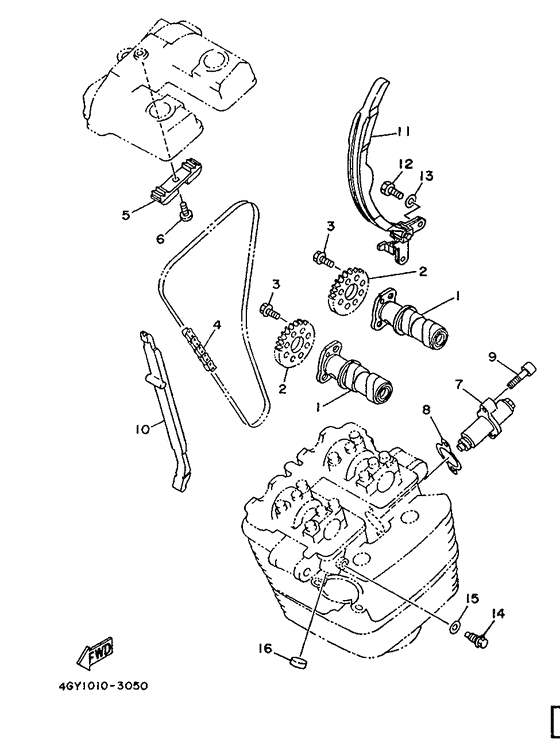

Camshaft & chain Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-12171-00-00
Camshaft 1
|
4GY-12171-00-00 |
— | ||
|
02
|
02
4GY-12176-00-00 Sprocket, Cam Chain |
4GY-12176-00-00 |
from US $72.13 |
||
|
03
|
03
90105-07385-00 Bolt, Flange |
90105-07385-00 |
from US $1.93 |
||
|
04
|
04
945-91431-22-00 Chain |
945-91431-22-00 |
from US $41.03 |
||
|
05
|
05
4GY-12241-00-00
Guide, Stopper 2
|
4GY-12241-00-00 |
— | ||
|
06
|
06
98507-06008-00 Screw |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
06
|
06
98517-06008-00 Screw |
98517-06008-00 |
from US $2.41 |
||
|
07
|
07
3GC-12210-10-00 P97 Tensioner Assy, Cam |
3GC-12210-10-00 |
from US $56.65 |
||
|
08
|
08
4BE-12113-00-00
Spring, Valve Inner
|
4BE-12113-00-00 |
— | ||
|
09
|
09
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
10
|
10
4GY-12251-00-00 Damper, Chain 1 |
4GY-12251-00-00 |
from US $59.13 |
||
|
11
|
11
4GY-12252-00-00 Damper, Chain 2 |
4GY-12252-00-00 |
from US $121.58 |
||
|
12
|
12
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
90109-06418-00 Bolt |
90109-06418-00 |
from US $1.70 |
||
|
15
|
15
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
16
|
16
903-38180-67-00 P97 Plug |
903-38180-67-00 |
from US $6.66 |
||
