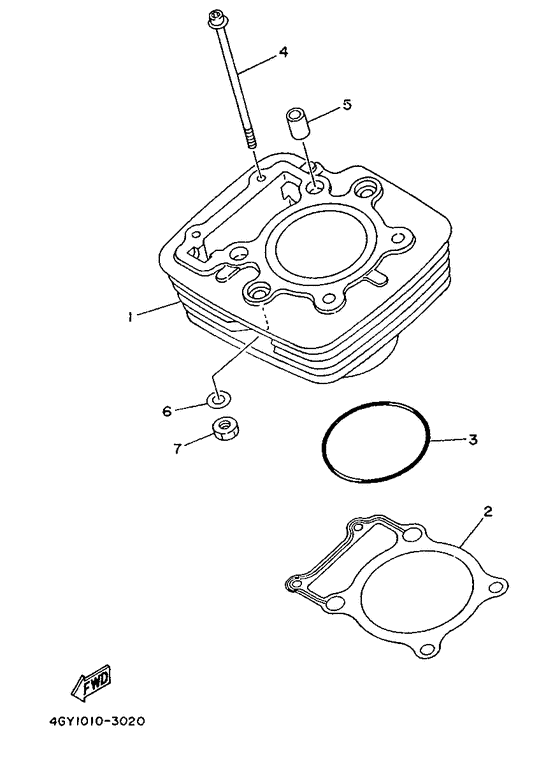

Cylinder Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-11310-00-00
Cylinder
|
4GY-11310-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4GY-11310-01-00
Cylinder
|
4GY-11310-01-00 |
— | ||
|
02
|
02
4GY-11351-00-00 Gasket, Cylinder |
4GY-11351-00-00 |
from US $7.08 |
||
|
03
|
03
932-10785-44-00 O-Ring |
932-10785-44-00 |
from US $5.74 |
||
|
04
|
04
90105-06406-00 Bolt, Flange |
90105-06406-00 |
from US $7.23 |
||
|
05
|
05
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
06
|
06
90201-094G1-00 Washer, Plate (33N) |
90201-094G1-00 |
from US $2.13 |
||
|
07
|
07
95337-08600-00 Nut |
95337-08600-00 |
from US $1.13 |
||
