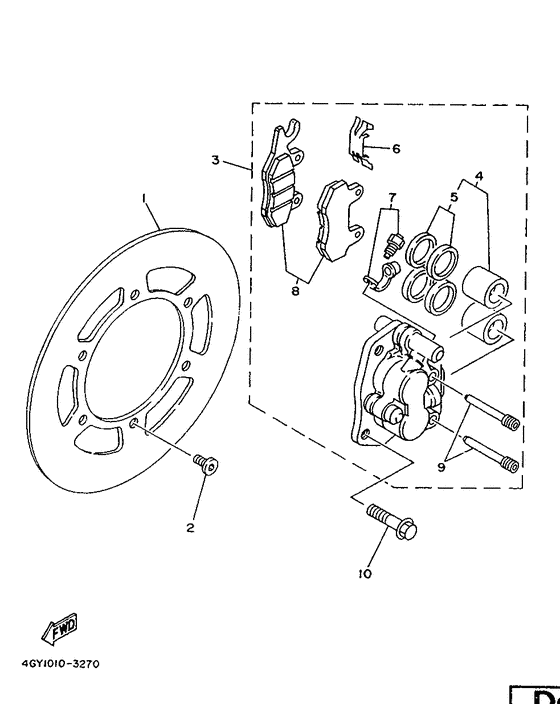

Front brake. caliper Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3XP-2582T-00-00 Disc, Brake (Left) |
3XP-2582T-00-00 |
from US $193.23 |
||
|
02
|
02
90109-065F3-00 Bolt |
90109-065F3-00 |
from US $1.84 |
||
|
03
|
03
4GY-2580T-01-00 Caliper Assy (Left) |
4GY-2580T-01-00 |
US $447.39 |
||
|
04
|
04
4EW-W0057-00-00 Piston Assy, Caliper |
4EW-W0057-00-00 |
from US $55.40 |
||
|
05
|
05
3JD-W0047-00-00 Caliper Seal Kit |
3JD-W0047-00-00 |
from US $22.57 |
||
| replacement | |||||
|
05
|
05
3JD-25803-00-00 Caliper Seal Kit |
3JD-25803-00-00 |
from US $22.68 |
||
|
06
|
06
3SP-25919-01-00 Support, Pad |
3SP-25919-01-00 |
from US $22.67 |
||
|
07
|
07
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.72 |
||
|
08
|
08
4GY-W0045-00-00 Brake Pad Kit |
4GY-W0045-00-00 |
from US $75.99 |
||
|
09
|
09
3GD-25933-00-00 Pin, Pad |
3GD-25933-00-00 |
from US $13.46 |
||
|
10
|
10
901-05103-16-00
Bolt, Flange
|
901-05103-16-00 |
— | ||
| replacements | |||||
|
10
|
10
958-14100-40-00 Bolt, Flange |
958-14100-40-00 |
from US $2.69 |
||
|
10
|
10
90105-10778-00 Bolt, Flange |
90105-10778-00 |
from US $4.53 |
||
