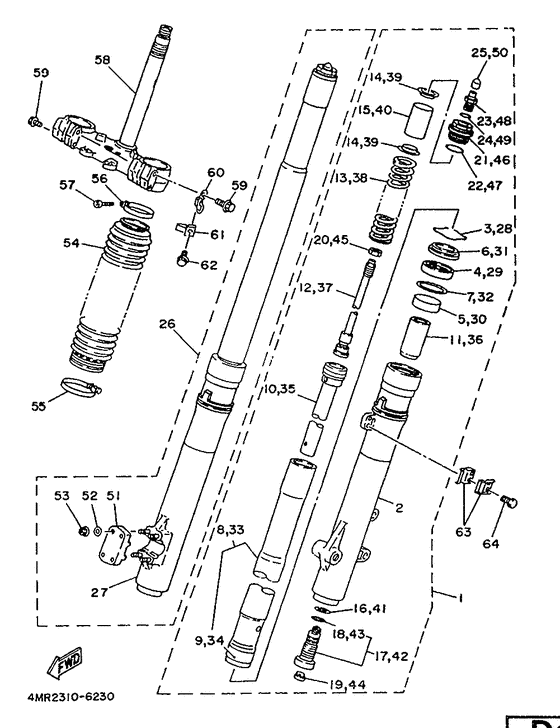

Front fork Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-23102-01-00
Front Fork Assy (L.h)
|
4GY-23102-01-00 |
— | ||
|
02
|
02
4GY-23126-00-00
Tube, Outer (L.h)
|
4GY-23126-00-00 |
— | ||
| replacement | |||||
|
02
|
02
5GF-23126-20-00 Tube, Outer (Left) |
5GF-23126-20-00 |
from US $305.13 |
||
|
03
|
03
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
US $10.55 |
||
|
04
|
04
2VM-23145-L0-00
Oil Seal
|
2VM-23145-L0-00 |
— | ||
| replacement | |||||
|
04
|
04
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.16 |
||
|
05
|
05
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
05
|
05
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.56 |
||
|
06
|
06
2VM-23144-L0-00 Seal, Dust |
2VM-23144-L0-00 |
from US $20.40 |
||
|
07
|
07
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $8.36 |
||
|
08
|
08
4GY-23110-00-00 Inner Tube Comp. 1 |
4GY-23110-00-00 |
from US $365.98 |
||
|
09
|
09
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
09
|
09
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $14.82 |
||
|
10
|
10
4GY-23170-00-00 Cylinder Comp., Front Fork |
4GY-23170-00-00 |
US $310.86 |
||
|
11
|
11
2VM-23173-L0-00 Spindle, Taper |
2VM-23173-L0-00 |
US $42.69 |
||
|
12
|
12
4GY-2314A-01-00
Piston Rod Assy
|
4GY-2314A-01-00 |
— | ||
|
13
|
13
4GY-23141-00-00
Spring, Front Fork
|
4GY-23141-00-00 |
— | ||
|
14
|
14
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
15
|
15
4GY-23118-01-00 Spacer |
4GY-23118-01-00 |
US $12.47 |
||
|
16
|
16
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
17
|
17
46Y-2316A-01-00
Valve Comp
|
46Y-2316A-01-00 |
— | ||
|
18
|
18
3XP-23188-00-00 O-Ring |
3XP-23188-00-00 |
from US $2.27 |
||
|
19
|
19
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $7.79 |
||
|
20
|
20
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
21
|
21
2VM-23111-L0-00 Bolt, Cap |
2VM-23111-L0-00 |
from US $105.71 |
||
|
22
|
22
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
23
|
23
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
24
|
24
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
25
|
25
2VN-23185-L0-00 Cover, Valve |
2VN-23185-L0-00 |
from US $7.23 |
||
|
26
|
26
4GY-23103-01-00
Front Fork Assy (R.h)
|
4GY-23103-01-00 |
— | ||
| replacement | |||||
|
26
|
26
4GY-23103-02-00
Front Fork Assy (R.h)
|
4GY-23103-02-00 |
— | ||
|
27
|
27
4GY-23136-00-00
Tube, Outer 2
|
4GY-23136-00-00 |
— | ||
| replacement | |||||
|
27
|
27
5GF-23136-20-00 Tube, Outer (Right) |
5GF-23136-20-00 |
from US $328.90 |
||
|
28
|
28
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
US $10.55 |
||
|
29
|
29
2VM-23145-L0-00
Oil Seal
|
2VM-23145-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.16 |
||
|
30
|
30
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.56 |
||
|
31
|
31
2VM-23144-L0-00 Seal, Dust |
2VM-23144-L0-00 |
from US $20.40 |
||
|
32
|
32
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $8.36 |
||
|
33
|
33
4GY-23110-00-00 Inner Tube Comp. 1 |
4GY-23110-00-00 |
from US $365.98 |
||
|
34
|
34
3XJ-23171-L0-00
Metal, Slide 2
|
3XJ-23171-L0-00 |
— | ||
| replacement | |||||
|
34
|
34
5EB-23171-00-00 Piston, Front Fork |
5EB-23171-00-00 |
from US $14.82 |
||
|
35
|
35
4GY-23170-00-00 Cylinder Comp., Front Fork |
4GY-23170-00-00 |
US $310.86 |
||
|
36
|
36
2VM-23173-L0-00 Spindle, Taper |
2VM-23173-L0-00 |
US $42.69 |
||
|
37
|
37
4GY-2314A-01-00
Piston Rod Assy
|
4GY-2314A-01-00 |
— | ||
|
38
|
38
4GY-23141-00-00
Spring, Front Fork
|
4GY-23141-00-00 |
— | ||
|
39
|
39
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
40
|
40
4GY-23118-01-00 Spacer |
4GY-23118-01-00 |
US $12.47 |
||
|
41
|
41
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
42
|
42
4GY-2316A-01-00 Valve Comp |
4GY-2316A-01-00 |
US $192.19 |
||
|
43
|
43
3XP-23188-00-00 O-Ring |
3XP-23188-00-00 |
from US $2.27 |
||
|
44
|
44
55Y-2312G-00-00
Plug
|
55Y-2312G-00-00 |
— | ||
|
45
|
45
3XJ-23357-L0-00 Nut |
3XJ-23357-L0-00 |
from US $1.13 |
||
|
46
|
46
2VM-23111-L0-00 Bolt, Cap |
2VM-23111-L0-00 |
from US $105.71 |
||
|
47
|
47
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
48
|
48
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
49
|
49
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
50
|
50
2VN-23185-L0-00 Cover, Valve |
2VN-23185-L0-00 |
from US $7.23 |
||
|
51
|
51
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
52
|
52
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
52
|
52
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
52
|
52
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
52
|
52
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
53
|
53
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
54
|
54
4GY-23191-10-00 Boot (Violet) |
4GY-23191-10-00 |
US $76.40 |
||
|
55
|
55
3LD-23489-00-00 Band |
3LD-23489-00-00 |
from US $16.86 |
||
|
56
|
56
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $5.06 |
||
|
57
|
57
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
58
|
58
4RR-23340-00-00
Under Bracket Comp
|
4RR-23340-00-00 |
— | ||
|
59
|
59
95024-08040-00 Bolt, Flange |
95024-08040-00 |
from US $1.42 |
||
|
60
|
60
4RR-2331E-00-00
Guide, Cable
|
4RR-2331E-00-00 |
— | ||
|
61
|
61
4GY-23389-00-00
Guide, Cable
|
4GY-23389-00-00 |
— | ||
|
62
|
62
90105-05361-00 Bolt, Flange |
90105-05361-00 |
from US $1.28 |
||
|
63
|
63
90465-16258-00 Clamp |
90465-16258-00 |
from US $8.36 |
||
|
64
|
64
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.07 |
||
