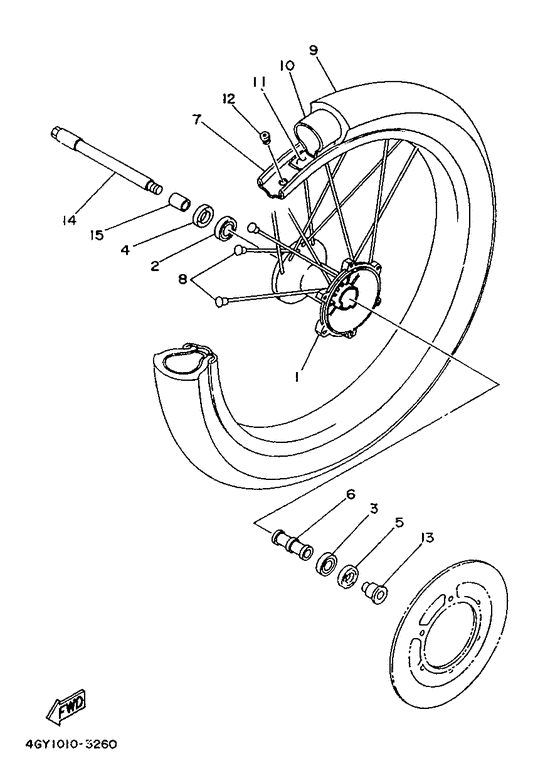

Front wheel Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-25111-00-35 Hub, FrontSilver |
4GY-25111-00-35 |
US $244.54 |
||
| replacement | |||||
|
01
|
01
4PX-25111-00-35 Hub, FrontHub, front (sl) Silver |
4PX-25111-00-35 |
from US $244.54 |
||
|
02
|
02
93306-20226-00 BearingKoyo |
93306-20226-00 |
from US $14.88 |
||
|
03
|
03
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.88 |
||
|
04
|
04
93106-20021-00 Oil Seal |
93106-20021-00 |
from US $3.04 |
||
|
05
|
05
93106-22032-00 Oil Seal |
93106-22032-00 |
from US $5.67 |
||
|
06
|
06
90560-15240-00 Spacer (34L) |
90560-15240-00 |
from US $11.19 |
||
|
07
|
07
94416-21518-00 Rim (1.60-21) |
94416-21518-00 |
US $314.93 |
||
|
08
|
08
3LD-25104-00-00 Spoke Set, Front |
3LD-25104-00-00 |
from US $95.09 |
||
|
09
|
09
94130-2105H-00
Tire
Bridgestone |
94130-2105H-00 |
— | ||
|
10
|
10
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6) |
942-27211-23-00 |
US $54.59 |
||
|
11
|
11
94330-21084-00 Band, Rim (1.60-21) |
94330-21084-00 |
from US $4.39 |
||
|
12
|
12
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.70 |
||
|
13
|
13
90387-1501X-00 Collar |
90387-1501X-00 |
from US $30.04 |
||
|
14
|
14
4GY-25181-00-00 Axle, Wheel |
4GY-25181-00-00 |
from US $75.85 |
||
|
15
|
15
90387-156R7-00 Collar |
90387-156R7-00 |
US $14.22 |
||
