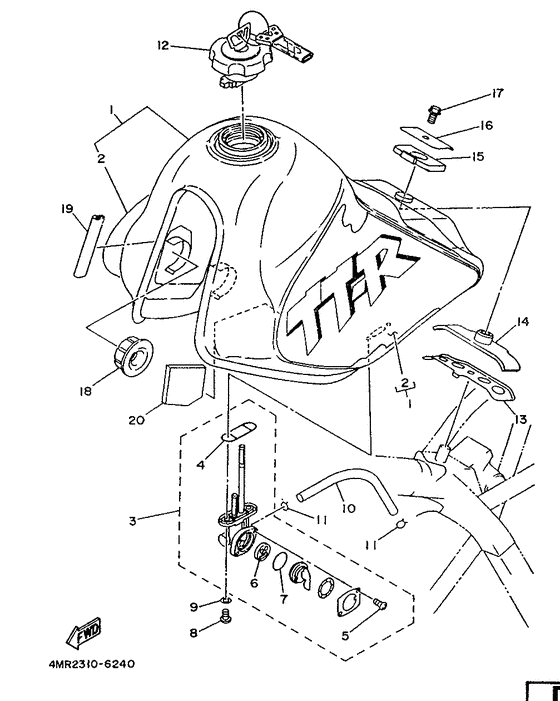

Fuel tank Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-24110-00-03
Fuel Tank Comp
Purplish white solid 1 |
4GY-24110-00-03 |
— | ||
|
02
|
02
4RR-24240-00-00
Graphic Set
|
4RR-24240-00-00 |
— | ||
|
03
|
03
23F-24500-01-00
Fuel Cock Assy 1
|
23F-24500-01-00 |
— | ||
| replacement | |||||
|
03
|
03
23F-24500-20-00 Fuel Cock Assy 1 |
23F-24500-20-00 |
from US $31.03 |
||
|
04
|
04
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
05
|
05
985-03030-08-00
Screw, Pan Head
|
985-03030-08-00 |
— | ||
| replacement | |||||
|
05
|
05
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
06
|
06
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
06
|
06
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
07
|
07
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
07
|
07
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.70 |
||
|
08
|
08
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
09
|
09
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
10
|
10
904-45100-E9-00
Hose (L110)
|
904-45100-E9-00 |
— | ||
| replacement | |||||
|
10
|
10
904-45107-52-00 Hose (L170) |
904-45107-52-00 |
from US $3.68 |
||
|
11
|
11
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
11
|
11
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
12
|
12
11H-24602-03-00
Cap Assy
|
11H-24602-03-00 |
— | ||
| replacement | |||||
|
12
|
12
11H-24602-10-00 Cap Assy |
11H-24602-10-00 |
from US $82.21 |
||
|
13
|
13
4GY-24187-00-00 Washer, Special |
4GY-24187-00-00 |
US $18.36 |
||
|
14
|
14
1KH-24182-00-00 Damper, Locating 2 |
1KH-24182-00-00 |
US $20.64 |
||
|
15
|
15
30X-24183-01-00 Damper, Locating 3 |
30X-24183-01-00 |
from US $8.08 |
||
|
16
|
16
30X-24186-01-00 Washer, Special |
30X-24186-01-00 |
from US $3.68 |
||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
18
|
18
4H7-24181-00-00 Damper, Locating 1 |
4H7-24181-00-00 |
from US $7.93 |
||
|
19
|
19
4GY-24188-00-00 Mold, Fuel Tank |
4GY-24188-00-00 |
from US $9.35 |
||
| replacement | |||||
|
19
|
19
1HX-24188-01-00 Mold, Fuel Tank |
1HX-24188-01-00 |
from US $9.35 |
||
|
20
|
20
29N-14425-00-00 Damper 1 |
29N-14425-00-00 |
from US $2.36 |
||
