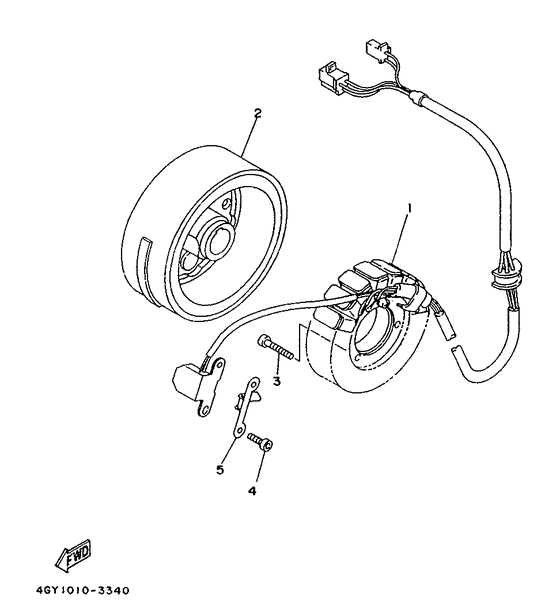

Generator Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-81410-01-00 Stator Assy |
4GY-81410-01-00 |
from US $440.03 |
||
| replacement | |||||
|
01
|
01
4GY-81410-02-00 Stator Assy |
4GY-81410-02-00 |
from US $450.12 |
||
|
02
|
02
4RR-81450-00-00 Rotor Assy |
4RR-81450-00-00 |
from US $355.32 |
||
|
03
|
03
91317-05025-00 Bolt |
91317-05025-00 |
from US $1.56 |
||
|
04
|
04
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
05
|
05
90465-08358-00 Clamp |
90465-08358-00 |
from US $12.75 |
||
