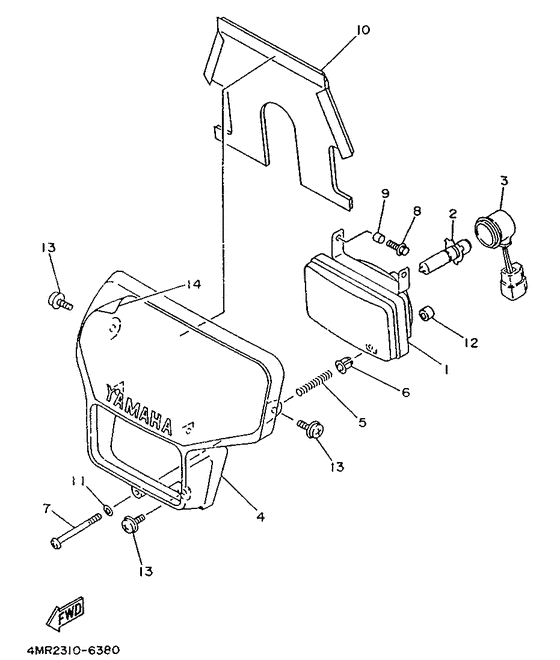

Headlight Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-84320-00-00 Lens Assy |
4GY-84320-00-00 |
from US $100.25 |
||
| replacement | |||||
|
01
|
01
4GY-84320-01-00 Lens Assy |
4GY-84320-01-00 |
US $135.90 |
||
|
02
|
02
3FW-84314-00-00 Bulb, Headlight |
3FW-84314-00-00 |
from US $35.14 |
||
|
03
|
03
3FW-84340-00-00
Socket Cord Assy 1
|
3FW-84340-00-00 |
— | ||
| replacement | |||||
|
03
|
03
3FW-84340-01-00
Socket Cord Assy 1
|
3FW-84340-01-00 |
— | ||
|
04
|
04
4GY-84311-00-00
Body, Headlight
|
4GY-84311-00-00 |
— | ||
|
05
|
05
4GY-84332-00-00 Spring, Screw |
4GY-84332-00-00 |
from US $4.73 |
||
|
06
|
06
50W-84334-00-00 Nut, Adjusting |
50W-84334-00-00 |
from US $3.09 |
||
|
07
|
07
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
08
|
08
55U-84337-00-00 Bolt, Special |
55U-84337-00-00 |
from US $8.08 |
||
|
09
|
09
55U-84328-00-00 Spacer |
55U-84328-00-00 |
from US $2.64 |
||
|
10
|
10
3XP-84196-00-00
Cover, Socket
|
3XP-84196-00-00 |
— | ||
|
11
|
11
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
11
|
11
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
12
|
12
2RR-84178-00-00 Plug |
2RR-84178-00-00 |
from US $2.13 |
||
|
13
|
13
90159-06189-00 Screw, With Washer |
90159-06189-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90159-06182-00 Screw, With Washer(3Yj) |
90159-06182-00 |
from US $1.70 |
||
|
14
|
14
4RR-28391-00-00
Graphic 1
|
4RR-28391-00-00 |
— | ||
