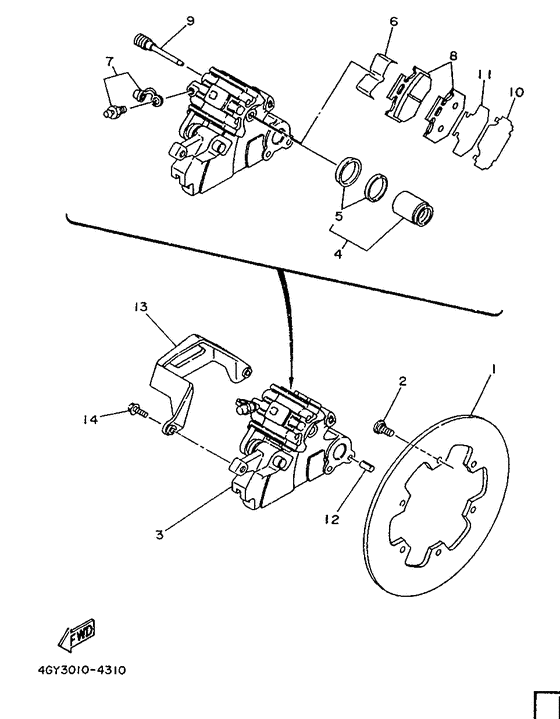

Rear brake caliper Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-2582W-00-00 Disc, Rear Brake 2 |
4GY-2582W-00-00 |
from US $140.72 |
||
|
02
|
02
90109-065F3-00 Bolt |
90109-065F3-00 |
from US $1.84 |
||
|
03
|
03
4GY-2580W-00-00 Caliper Assembly, Rear 2 |
4GY-2580W-00-00 |
from US $425.57 |
||
|
04
|
04
3SP-W0057-50-00 Piston Assy, Caliper |
3SP-W0057-50-00 |
from US $41.72 |
||
|
05
|
05
3JD-W0047-50-00 Caliper Seal Kit |
3JD-W0047-50-00 |
from US $4.82 |
||
| replacement | |||||
|
05
|
05
3JD-25803-50-00 Caliper Seal Kit |
3JD-25803-50-00 |
from US $4.82 |
||
|
06
|
06
4GY-25919-50-00 Support, Pad |
4GY-25919-50-00 |
from US $18.42 |
||
|
07
|
07
36Y-W0048-00-00 Bleed Screw Kit |
36Y-W0048-00-00 |
from US $4.72 |
||
|
08
|
08
4GY-W0046-00-00 Brake Pad Kit 2 |
4GY-W0046-00-00 |
from US $66.53 |
||
|
09
|
09
3SP-25924-51-00 Pin, Pad |
3SP-25924-51-00 |
from US $13.74 |
||
| replacement | |||||
|
09
|
09
3FV-25924-00-00 Pin, Pad |
3FV-25924-00-00 |
from US $13.74 |
||
|
10
|
10
4GY-25827-50-00
Shim, Caliper
|
4GY-25827-50-00 |
— | ||
| replacement | |||||
|
10
|
10
4XM-25827-50-00
Shim, Caliper
|
4XM-25827-50-00 |
— | ||
|
11
|
11
4GY-22898-50-00 Insulator, Heat |
4GY-22898-50-00 |
from US $14.17 |
||
|
12
|
12
91690-60016-00 Pin, Spring |
91690-60016-00 |
from US $2.27 |
||
|
13
|
13
4GY-27491-00-00 Protector |
4GY-27491-00-00 |
from US $10.63 |
||
|
14
|
14
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
14
|
14
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
