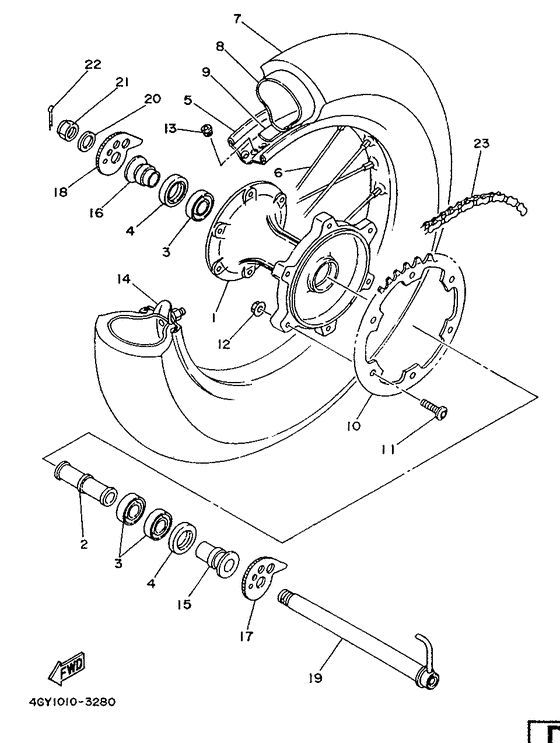

Rear wheel Diagram Yamaha TT250R TT-R
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4MR2
- Sales region
- England (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-25311-00-35 Hub, RearSilver |
4GY-25311-00-35 |
from US $286.29 |
||
|
02
|
02
90560-20278-00 Spacer |
90560-20278-00 |
from US $15.73 |
||
|
03
|
03
933-06072-02-00 Bearing |
933-06072-02-00 |
from US $28.34 |
||
|
04
|
04
93106-28023-00 Oil Seal |
93106-28023-00 |
from US $4.82 |
||
|
05
|
05
94421-18519-00 Rim (2.15-18) |
94421-18519-00 |
US $327.53 |
||
|
06
|
06
2VN-25304-00-00 Spoke Set, Rear |
2VN-25304-00-00 |
from US $131.67 |
||
|
07
|
07
94146-1805J-00
Tire
Bridgestone |
94146-1805J-00 |
— | ||
|
08
|
08
94212-18188-00 Tube (110-140/80-100-18 M/c)Tube |
94212-18188-00 |
US $39.29 |
||
|
09
|
09
94340-18086-00 Band, Rim (2.50-18) |
94340-18086-00 |
from US $4.39 |
||
|
10
|
10
2YY-25444-01-00 Sprocket, Driven (44T) |
2YY-25444-01-00 |
US $55.68 |
||
| replacement | |||||
|
10
|
10
2YY-25444-02-00 Sprocket, Driven (44T) |
2YY-25444-02-00 |
from US $42.42 |
||
|
11
|
11
90110-08071-00 Bolt, Hexagon Socket Head |
90110-08071-00 |
from US $3.83 |
||
|
12
|
12
956-17082-00-00
Nut, Self-Locking
|
956-17082-00-00 |
— | ||
| replacement | |||||
|
12
|
12
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.13 |
||
|
13
|
13
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.70 |
||
|
14
|
14
39X-25394-00-00 Spacer, Bead |
39X-25394-00-00 |
from US $37.21 |
||
|
15
|
15
90387-2001U-00 Collar |
90387-2001U-00 |
from US $50.43 |
||
|
16
|
16
90387-2001V-00 Collar |
90387-2001V-00 |
from US $40.62 |
||
|
17
|
17
3BN-25388-00-00 Puller, Chain 1 |
3BN-25388-00-00 |
from US $17.43 |
||
|
18
|
18
3BN-25389-00-00 Puller, Chain 2 |
3BN-25389-00-00 |
from US $15.16 |
||
|
19
|
19
4GY-25381-00-00 Axle, Wheel |
4GY-25381-00-00 |
from US $84.69 |
||
|
20
|
20
90201-204M9-00 Washer, Plate |
90201-204M9-00 |
from US $3.54 |
||
|
21
|
21
90171-18053-00 Nut, Castle |
90171-18053-00 |
from US $24.37 |
||
|
22
|
22
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.36 |
||
|
23
|
23
94581-52206-00
Chain
|
94581-52206-00 |
— | ||
