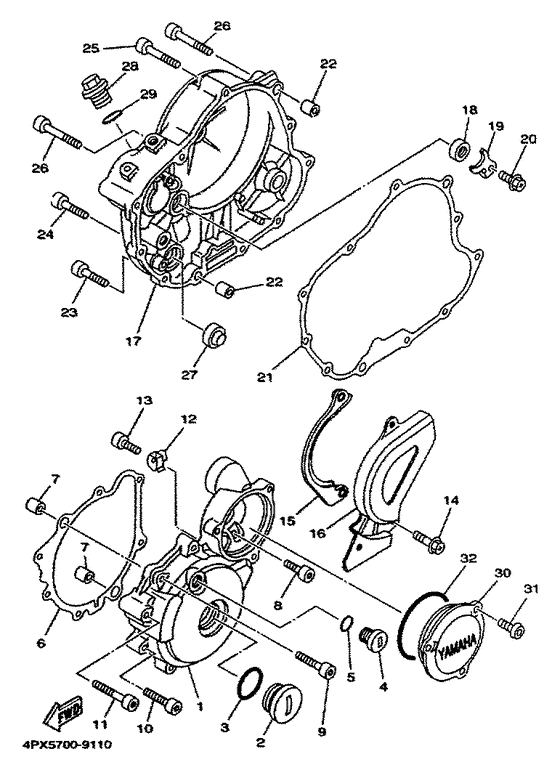

Crankcase cover 1 Diagram Yamaha TT250R TT-R
- Year
- 1999
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX5
- Sales region
- Australia (999)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-15411-02-00 Cover, Crankcase 1 |
4GY-15411-02-00 |
from US $221.06 |
||
|
02
|
02
90340-32123-00 Plug, Straight Screw(3Aw) |
90340-32123-00 |
from US $9.78 |
||
|
03
|
03
932-10321-72-00 O-Ring |
932-10321-72-00 |
from US $1.70 |
||
|
04
|
04
90340-14128-00 Plug, Straight Screw(3Rw) |
90340-14128-00 |
from US $11.05 |
||
|
05
|
05
93210-14369-00 O-Ring |
93210-14369-00 |
from US $1.70 |
||
|
06
|
06
4GY-15451-00-00 Gasket, Crankcase Cover 1 |
4GY-15451-00-00 |
from US $5.40 |
||
|
07
|
07
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
08
|
08
90110-06224-00 Bolt |
90110-06224-00 |
from US $0.99 |
||
| replacement | |||||
|
08
|
08
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
09
|
09
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
10
|
10
913-17060-30-00
Bolt
|
913-17060-30-00 |
— | ||
| replacement | |||||
|
10
|
10
90110-06138-00 Bolt |
90110-06138-00 |
from US $0.99 |
||
|
11
|
11
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
| replacement | |||||
|
11
|
11
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
12
|
12
90465-12373-00 Clamp |
90465-12373-00 |
from US $16.43 |
||
|
13
|
13
91317-05012-00 Bolt |
91317-05012-00 |
from US $1.07 |
||
|
14
|
14
90159-06202-00 Screw, With Washer |
90159-06202-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90159-06092-00 Screw, With Washer |
90159-06092-00 |
from US $1.70 |
||
|
15
|
15
4PX-17466-00-00 Guide, Chain |
4PX-17466-00-00 |
from US $34.99 |
||
|
16
|
16
4PX-15421-00-00 Cover, Crankcase 2 |
4PX-15421-00-00 |
from US $37.30 |
||
|
17
|
17
4GY-15431-00-00
Cover, Crankcase 3
|
4GY-15431-00-00 |
— | ||
|
18
|
18
93101-14164-00 Oil Seal |
93101-14164-00 |
from US $6.40 |
||
|
19
|
19
4GY-15118-00-00 Holder |
4GY-15118-00-00 |
from US $7.60 |
||
|
20
|
20
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
20
|
20
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
21
|
21
4GY-15461-00-00 Gasket, Crankcase Cover 2 |
4GY-15461-00-00 |
from US $21.02 |
||
|
22
|
22
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $1.70 |
||
|
23
|
23
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.07 |
||
|
24
|
24
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
| replacements | |||||
|
24
|
24
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
24
|
24
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
25
|
25
91317-06040-00 Bolt |
91317-06040-00 |
from US $1.07 |
||
|
26
|
26
91317-06050-00 Bolt |
91317-06050-00 |
from US $1.07 |
||
|
27
|
27
3Y1-15361-00-00 Gauge, Level |
3Y1-15361-00-00 |
from US $8.76 |
||
|
28
|
28
90340-20143-00 Plug, Straight Screw |
90340-20143-00 |
from US $26.94 |
||
|
29
|
29
932-10191-23-00 O-Ring |
932-10191-23-00 |
from US $1.70 |
||
|
30
|
30
4GY-15415-01-00 Cover, 1 |
4GY-15415-01-00 |
from US $83.03 |
||
|
31
|
31
92017-06016-00 Bolt, Button Head |
92017-06016-00 |
from US $1.56 |
||
|
32
|
32
93210-74424-00 O-Ring |
93210-74424-00 |
from US $8.93 |
||
| replacement | |||||
|
32
|
32
93210-74M35-00 O-Ring |
93210-74M35-00 |
from US $6.74 |
||
