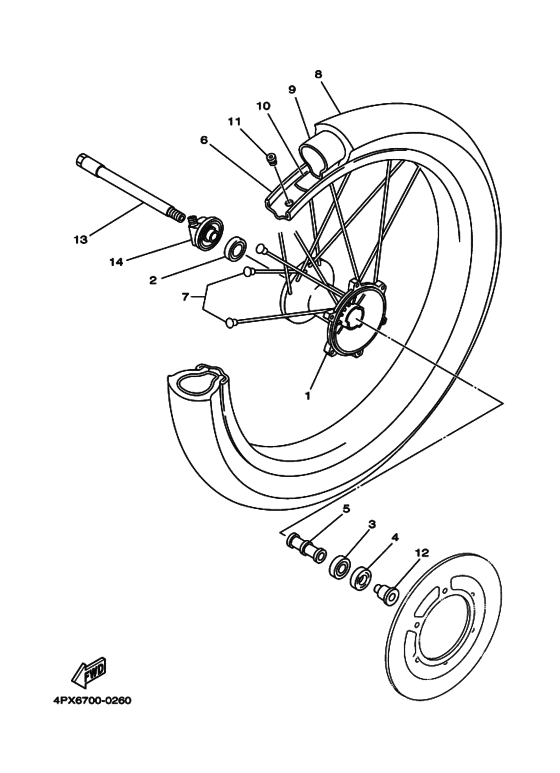

Front wheel Diagram Yamaha TT250R TT-R
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX7
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4PX-25111-00-35 Hub, FrontHub, front (sl) SL |
4PX-25111-00-35 |
from US $244.54 |
||
|
2
|
2
93306-20212-00 Bearing |
93306-20212-00 |
from US $15.44 |
||
| replacement | |||||
|
2
|
2
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
3
|
3
93306-00316-00 Bearing |
93306-00316-00 |
from US $19.88 |
||
|
4
|
4
93106-22032-00 Oil Seal |
93106-22032-00 |
from US $5.67 |
||
|
5
|
5
90560-15240-00 Spacer (34L) |
90560-15240-00 |
from US $11.19 |
||
|
6
|
6
94416-21555-00 Rim (1.60-21)1.60-21 |
94416-21555-00 |
from US $353.69 |
||
|
7
|
7
3LD-25104-00-00 Spoke Set, Front |
3LD-25104-00-00 |
from US $95.09 |
||
|
8
|
8
94130-2105K-00
Tire (3.00-21 51P D605F)
3.00-21 51P D605F; DUNLOP |
94130-2105K-00 |
— | ||
|
9
|
9
942-27211-01-00
Tube (Mcs 2.75/3.00-21 Tr6)
80/100-21 M/C TR4; DUNLOP |
942-27211-01-00 |
— | ||
| replacement | |||||
|
9
|
9
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)80/100-21 M/C TR4; DUNLOP |
942-27211-23-00 |
US $54.59 |
||
|
10
|
10
94309-21161-00 Band, Rim (22-21)1.60-21; DUNLOP |
94309-21161-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
94330-21084-00 Band, Rim (1.60-21)1.60-21; DUNLOP |
94330-21084-00 |
from US $4.39 |
||
|
11
|
11
904-80086-08-00
Grommet
|
904-80086-08-00 |
— | ||
| replacement | |||||
|
11
|
11
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.70 |
||
|
12
|
12
90387-1501X-00 Collar |
90387-1501X-00 |
from US $30.04 |
||
|
13
|
13
4PX-25181-00-00 Axle, Wheel |
4PX-25181-00-00 |
from US $78.89 |
||
|
14
|
14
4PX-25190-00-00 Gear Unit Assy |
4PX-25190-00-00 |
from US $121.58 |
||
