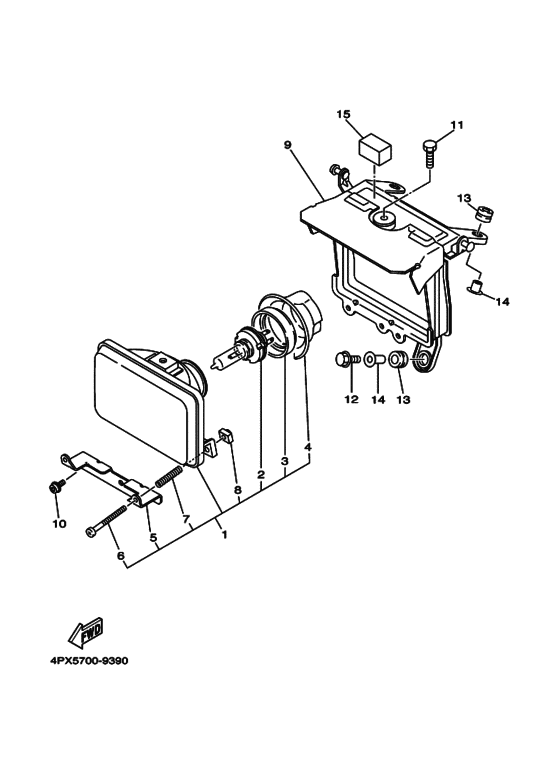

Headlight Diagram Yamaha TT250R TT-R
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX7
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4PX-84320-00-00 Lens Assy |
4PX-84320-00-00 |
US $287.37 |
||
|
2
|
2
2F9-84314-00-00 Bulb (12V 60/55W Halogen)12V-60/55W; (H4)HALOGEN |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
2
|
2
5V2-84314-00-XX
Bulb (12V-60/55W)
12V-60/55W; (H4)HALOGEN |
5V2-84314-00-XX |
— | ||
|
2
|
2
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
12V-60/55W; (H4)HALOGEN |
YMC-00903-00-00 |
— | ||
|
2
|
2
5VK-H4314-00-00 Bulb, Headlight12V-60/55W; (H4)HALOGEN |
5VK-H4314-00-00 |
US $42.42 |
||
|
2
|
2
8V0-84314-10-00 Bulb, Headlight12V-60/55W; (H4)HALOGEN |
8V0-84314-10-00 |
from US $42.42 |
||
|
3
|
3
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $18.42 |
||
|
4
|
4
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $15.87 |
||
|
5
|
5
4PX-8431R-00-00
Stay, Setting
|
4PX-8431R-00-00 |
— | ||
|
6
|
6
3TB-84325-00-00 Screw, Rim Fitting |
3TB-84325-00-00 |
from US $5.24 |
||
|
7
|
7
4GY-84332-00-00 Spring, Screw |
4GY-84332-00-00 |
from US $4.73 |
||
|
8
|
8
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.12 |
||
|
9
|
9
4PX-84311-10-00 Body, Headlight |
4PX-84311-10-00 |
US $127.11 |
||
|
10
|
10
3TB-84329-00-00 Bolt, Wing 1 |
3TB-84329-00-00 |
from US $2.03 |
||
|
11
|
11
3TB-84372-01-00 Bolt, Lamp Stay |
3TB-84372-01-00 |
from US $3.02 |
||
|
12
|
12
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.07 |
||
| replacements | |||||
|
12
|
12
958-17060-25-00
Bolt, Flange
|
958-17060-25-00 |
— | ||
|
12
|
12
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.99 |
||
|
13
|
13
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
13
|
13
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
14
|
14
903-87063-E6-00
Collar
|
903-87063-E6-00 |
— | ||
| replacement | |||||
|
14
|
14
90387-06158-00 Collar |
90387-06158-00 |
from US $1.56 |
||
|
15
|
15
5BF-14409-00-00 Damper |
5BF-14409-00-00 |
from US $1.40 |
||
