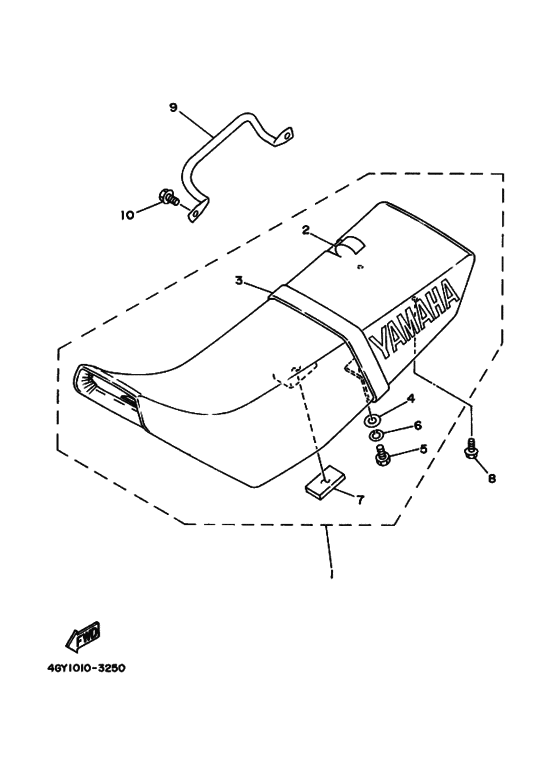

Seat Diagram Yamaha TT250R TT-R
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX7
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GY-24730-B0-00
Double Seat Assy
|
4GY-24730-B0-00 |
— | ||
|
2
|
2
4GY-24731-A0-00 Cover, Seat |
4GY-24731-A0-00 |
US $133.54 |
||
|
3
|
3
4GY-24734-B0-00 Band, Seat |
4GY-24734-B0-00 |
US $20.97 |
||
|
4
|
4
90201-06765-00 Washer, Plate (1Hf) |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
4
|
4
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
4
|
4
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
5
|
5
97002-06020-00 Bolt |
97002-06020-00 |
from US $0.99 |
||
| replacement | |||||
|
5
|
5
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
6
|
6
92902-06100-00 Washer, Spring |
92902-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
3TB-24185-00-00 Damper, Locating 5 |
3TB-24185-00-00 |
from US $2.55 |
||
|
8
|
8
95807-06016-00 Bolt, Flange |
95807-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.07 |
||
|
9
|
9
4GY-2127A-00-00 Handle, Standing |
4GY-2127A-00-00 |
US $62.86 |
||
|
10
|
10
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
10
|
10
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
10
|
10
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.07 |
||
