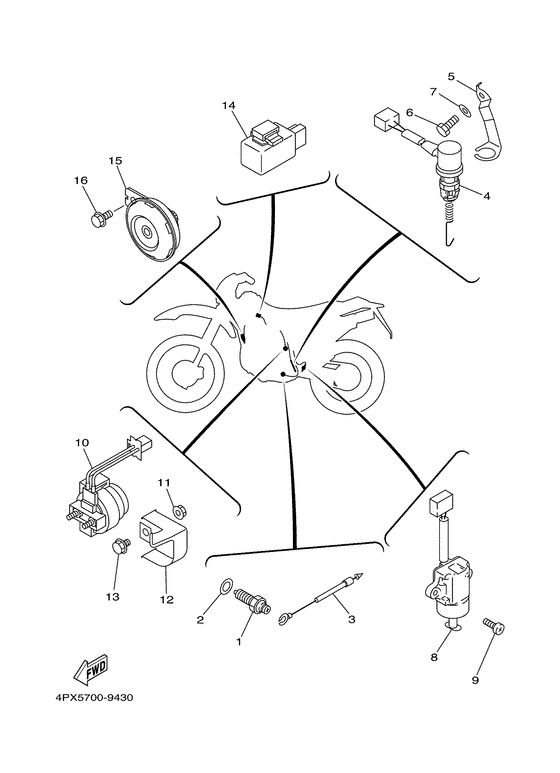

Partie electrique 2 Diagram Yamaha TT250R TT-R
- Year
- 2002
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX8
- Sales region
- France (010)
- Engine Capacity
- 250
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $23.80 |
||
|
02
|
02
90430-10148-00 Gasket |
90430-10148-00 |
from US $1.56 |
||
|
03
|
03
4GY-82509-00-00 Wire, Sub Lead |
4GY-82509-00-00 |
from US $8.93 |
||
|
04
|
04
4GY-82530-00-00 Stop Switch Assy |
4GY-82530-00-00 |
from US $35.42 |
||
| replacement | |||||
|
04
|
04
4GY-82530-01-00 Stop Switch Assy |
4GY-82530-01-00 |
US $39.53 |
||
|
05
|
05
4GY-82539-00-00 Stay, Stop Switch |
4GY-82539-00-00 |
US $20.12 |
||
|
06
|
06
97007-06016-00 Bolt |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
06
|
06
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
07
|
07
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
08
|
08
3LD-82566-30-00 Switch, Side Stand |
3LD-82566-30-00 |
from US $69.95 |
||
|
09
|
09
901-57050-79-00
Screw, Pan Head
|
901-57050-79-00 |
— | ||
| replacement | |||||
|
09
|
09
985-07050-14-00 Screw, Pan Head |
985-07050-14-00 |
from US $1.36 |
||
|
10
|
10
3SX-81940-00-00 Starter Relay Assy (Ms5D-361) |
3SX-81940-00-00 |
from US $87.04 |
||
|
11
|
11
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
12
|
12
4GY-81953-00-00 Stay, Relay |
4GY-81953-00-00 |
from US $19.98 |
||
|
13
|
13
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
14
|
14
4MY-83350-01-00 Flasher Relay Assy |
4MY-83350-01-00 |
from US $51.12 |
||
| replacements | |||||
|
14
|
14
4MY-83350-02-00 Flasher Relay Assy |
4MY-83350-02-00 |
from US $51.12 |
||
|
14
|
14
4MY-83350-03-00 Flasher Relay Assy |
4MY-83350-03-00 |
US $58.16 |
||
|
15
|
15
4JG-83371-00-00 Horn |
4JG-83371-00-00 |
US $38.55 |
||
| replacement | |||||
|
15
|
15
3MX-83371-11-00 Horn |
3MX-83371-11-00 |
from US $35.95 |
||
|
16
|
16
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
16
|
16
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
