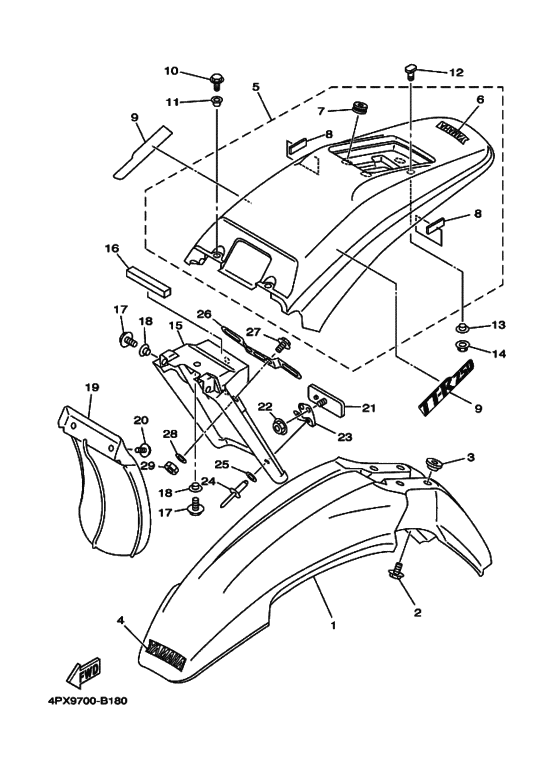

Fender Diagram Yamaha TT250R TT-R
- Year
- 2003
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PX9
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4GY-21511-40-00 Fender, Front (Blue) |
4GY-21511-40-00 |
from US $75.85 |
||
|
2
|
2
90119-06063-00 Bolt, With Washer (10V) |
90119-06063-00 |
from US $1.70 |
||
|
3
|
3
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
3
|
3
90387-06857-00 Collar |
90387-06857-00 |
from US $1.42 |
||
|
4
|
4
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
5
|
5
4GY-Y2161-S0-00
Rear Fender Comp
|
4GY-Y2161-S0-00 |
— | ||
|
6
|
6
99241-00080-00 Emblem, Yamaha |
99241-00080-00 |
from US $8.08 |
||
|
7
|
7
904-80141-02-00
Grommet
|
904-80141-02-00 |
— | ||
| replacement | |||||
|
7
|
7
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
8
|
8
1KT-21746-00-00 Damper |
1KT-21746-00-00 |
from US $1.03 |
||
| replacement | |||||
|
8
|
8
3XV-21717-00-00 Damper |
3XV-21717-00-00 |
from US $2.27 |
||
|
9
|
9
5GF-2163G-00-00 Emblem 1 |
5GF-2163G-00-00 |
US $14.60 |
||
| replacement | |||||
|
9
|
9
5GF-2163G-09-00 Emblem 1 |
5GF-2163G-09-00 |
US $14.60 |
||
|
10
|
10
97007-06016-00 Bolt |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
10
|
10
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
11
|
11
903-87064-J1-00
Collar
|
903-87064-J1-00 |
— | ||
| replacement | |||||
|
11
|
11
903-87061-07-00 Collar |
903-87061-07-00 |
from US $4.11 |
||
|
12
|
12
90109-064A5-00 Bolt |
90109-064A5-00 |
from US $2.69 |
||
|
13
|
13
90387-06648-00 Collar |
90387-06648-00 |
from US $1.56 |
||
|
14
|
14
956-07062-00-00
Nut, U Flange
|
956-07062-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95604-06200-00 Nut, U Flange |
95604-06200-00 |
from US $1.56 |
||
|
15
|
15
4PX-21685-00-00 Bracket, License |
4PX-21685-00-00 |
US $39.93 |
||
|
16
|
16
3VD-12465-00-00 Damper, Radiator |
3VD-12465-00-00 |
from US $2.13 |
||
|
17
|
17
97007-06016-00 Bolt |
97007-06016-00 |
from US $1.21 |
||
| replacement | |||||
|
17
|
17
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
18
|
18
90387-06500-00 Collar |
90387-06500-00 |
from US $1.98 |
||
|
19
|
19
4GY-21642-00-00 Guard, Flap |
4GY-21642-00-00 |
from US $47.11 |
||
|
20
|
20
90119-06194-00 Bolt, With Washer |
90119-06194-00 |
from US $1.70 |
||
| replacements | |||||
|
20
|
20
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
20
|
20
90119-06117-00 Bolt, With Washer |
90119-06117-00 |
from US $1.70 |
||
|
21
|
21
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.78 |
||
|
22
|
22
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
23
|
23
33G-85132-02-00 Bracket, Reflector 1 |
33G-85132-02-00 |
from US $9.92 |
||
|
24
|
24
90267-40090-00 Rivet, Blind |
90267-40090-00 |
from US $2.13 |
||
|
25
|
25
90201-04018-00 Washer (4Fm) |
90201-04018-00 |
from US $1.80 |
||
| replacement | |||||
|
25
|
25
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
26
|
26
3YF-84751-00-00 Bracket, License |
3YF-84751-00-00 |
from US $11.19 |
||
| replacement | |||||
|
26
|
26
3YF-84751-01-00 Bracket, License |
3YF-84751-01-00 |
from US $11.19 |
||
|
27
|
27
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
28
|
28
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
29
|
29
953-07066-00-00
Nut
|
953-07066-00-00 |
— | ||
| replacement | |||||
|
29
|
29
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
