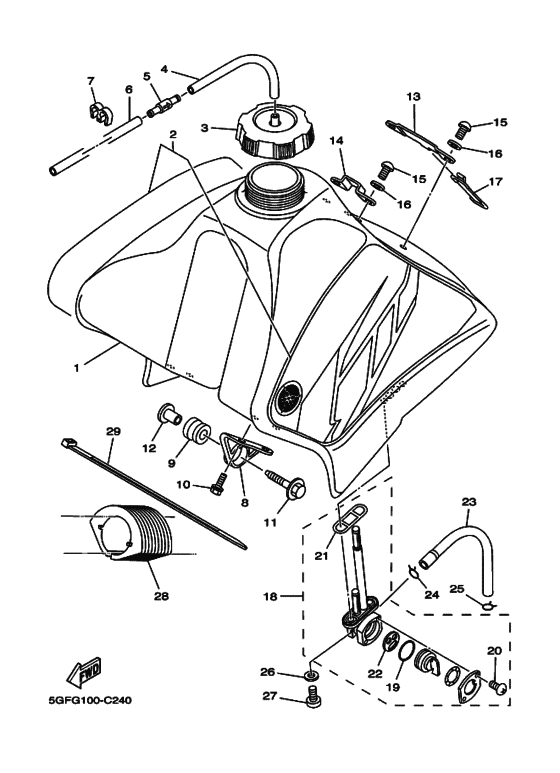

Fuel tank Diagram Yamaha TT250R TT-R
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PXA
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4PX-24110-10-00
Fuel Tank (Blue)
|
4PX-24110-10-00 |
— | ||
| replacement | |||||
|
1
|
1
4PX-24110-30-00 Fuel Tank (Blue) |
4PX-24110-30-00 |
from US $616.44 |
||
|
2
|
2
5GF-24240-30-00 Graphic Set |
5GF-24240-30-00 |
from US $349.92 |
||
|
3
|
3
5MV-24610-00-00 Cap Assy |
5MV-24610-00-00 |
from US $58.44 |
||
| replacement | |||||
|
3
|
3
5KM-24610-00-00 Cap Assy |
5KM-24610-00-00 |
from US $41.17 |
||
|
4
|
4
904-45092-20-00
Hose (L420)
|
904-45092-20-00 |
— | ||
| replacement | |||||
|
4
|
4
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
5
|
5
3XJ-24380-00-00 Pipe Joint Assy |
3XJ-24380-00-00 |
from US $21.39 |
||
|
6
|
6
904-45092-51-00
Hose (L420)
|
904-45092-51-00 |
— | ||
| replacements | |||||
|
6
|
6
904-45092-K1-00 Hose (L420) |
904-45092-K1-00 |
from US $5.06 |
||
|
6
|
6
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.40 |
||
|
7
|
7
90464-60067-00 Clamp |
90464-60067-00 |
from US $1.70 |
||
|
8
|
8
24X-24144-00-00 Holder, Damper |
24X-24144-00-00 |
from US $12.89 |
||
| replacement | |||||
|
8
|
8
5XE-24144-00-00 Holder, Damper |
5XE-24144-00-00 |
from US $12.89 |
||
|
9
|
9
90480-18549-00 Grommet(4Aa) |
90480-18549-00 |
from US $1.70 |
||
|
10
|
10
950-27060-16-00
Bolt, Flange
|
950-27060-16-00 |
— | ||
| replacement | |||||
|
10
|
10
901-05066-96-00 Bolt, Flange |
901-05066-96-00 |
from US $2.41 |
||
|
11
|
11
90119-06214-00 Bolt, With Washer |
90119-06214-00 |
from US $1.84 |
||
|
12
|
12
3JD-24186-00-00 Washer, Special |
3JD-24186-00-00 |
from US $9.78 |
||
| replacement | |||||
|
12
|
12
90387-06166-00 Collar |
90387-06166-00 |
from US $4.96 |
||
|
13
|
13
4PX-21348-00-00 Brackt, Tank FittingBracket, tank fitting |
4PX-21348-00-00 |
from US $9.21 |
||
|
14
|
14
4PX-21946-00-00 Bracket, Seat Fitting |
4PX-21946-00-00 |
from US $5.24 |
||
|
15
|
15
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
16
|
16
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
17
|
17
4PX-24173-00-00 Band, Tank Fitting 1 |
4PX-24173-00-00 |
from US $19.55 |
||
|
18
|
18
2GU-24500-01-00 Fuel Cock Assy 1 |
2GU-24500-01-00 |
from US $42.14 |
||
| replacement | |||||
|
18
|
18
2GU-24500-02-00 Fuel Cock Assy 1 |
2GU-24500-02-00 |
from US $35.02 |
||
|
19
|
19
3AJ-24534-00-00
Seal, Cock
|
3AJ-24534-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3AJ-24534-01-00 Seal, Cock |
3AJ-24534-01-00 |
from US $1.70 |
||
|
20
|
20
978-01030-08-00
Screw, Pan Head
|
978-01030-08-00 |
— | ||
| replacement | |||||
|
20
|
20
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
21
|
21
4X8-24512-00-00 O-Ring |
4X8-24512-00-00 |
from US $1.84 |
||
|
22
|
22
3AJ-24523-00-00
Valve Packing
|
3AJ-24523-00-00 |
— | ||
| replacement | |||||
|
22
|
22
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
23
|
23
4PX-24311-00-00
Pipe, Fuel 1
|
4PX-24311-00-00 |
— | ||
| replacement | |||||
|
23
|
23
69D-24311-00-00 Pipe, Fuel 1 |
69D-24311-00-00 |
from US $7.08 |
||
|
24
|
24
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
25
|
25
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
25
|
25
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
26
|
26
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
26
|
26
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
27
|
27
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
28
|
28
4GY-24184-00-00 Damper, Locating 4 |
4GY-24184-00-00 |
from US $20.12 |
||
|
29
|
29
904-65132-75-00
Clamp
|
904-65132-75-00 |
— | ||
| replacement | |||||
|
29
|
29
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $2.83 |
||
