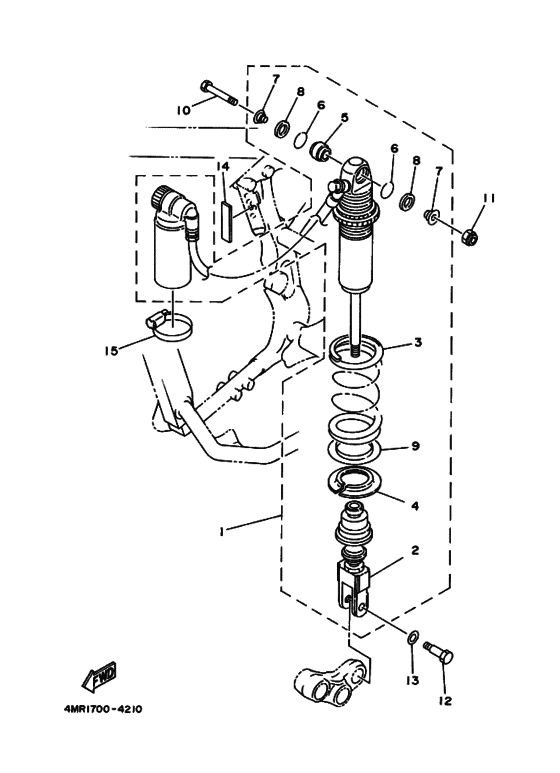

Rear suspension Diagram Yamaha TT250R TT-R
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PXA
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4PX-22210-00-00
Shock Absorber Assy, Rear
|
4PX-22210-00-00 |
— | ||
| replacement | |||||
|
1
|
1
4PX-22210-01-00
Shock Absorber Assy, Rear
|
4PX-22210-01-00 |
— | ||
|
2
|
2
4GY-22219-00-00 Bracket, Upper |
4GY-22219-00-00 |
from US $153.07 |
||
|
3
|
3
4PX-22212-00-00 Spring |
4PX-22212-00-00 |
US $156.12 |
||
|
4
|
4
3LD-22214-01-00 Guide, Spring 1 |
3LD-22214-01-00 |
from US $16.72 |
||
|
5
|
5
93399-99916-00 Bearing (93399-99934-00) |
93399-99916-00 |
from US $59.38 |
||
| replacement | |||||
|
5
|
5
933-99999-T3-00 Bearing (93399-99934-00) |
933-99999-T3-00 |
from US $68.63 |
||
|
6
|
6
93440-30113-00 Circlip |
93440-30113-00 |
from US $1.36 |
||
|
7
|
7
90387-100Y3-00 Collar |
90387-100Y3-00 |
from US $10.34 |
||
|
8
|
8
38V-22211-00-00 Cover |
38V-22211-00-00 |
from US $5.81 |
||
|
9
|
9
3XP-22224-00-00
Guide, Spring 2
|
3XP-22224-00-00 |
— | ||
|
10
|
10
3SP-22241-00-00
Bolt 1
|
3SP-22241-00-00 |
— | ||
|
11
|
11
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.67 |
||
|
12
|
12
90105-10614-00 Bolt, Flange |
90105-10614-00 |
from US $5.81 |
||
|
13
|
13
90201-112U6-00 Washer, Plate |
90201-112U6-00 |
from US $3.54 |
||
|
14
|
14
4GY-22261-00-00 Damper, Sub Tank |
4GY-22261-00-00 |
from US $3.12 |
||
|
15
|
15
904-60552-33-00
Hose Clamp Assy
|
904-60552-33-00 |
— | ||
| replacement | |||||
|
15
|
15
90450-60007-00 Hose Clamp Assy |
90450-60007-00 |
from US $13.32 |
||
