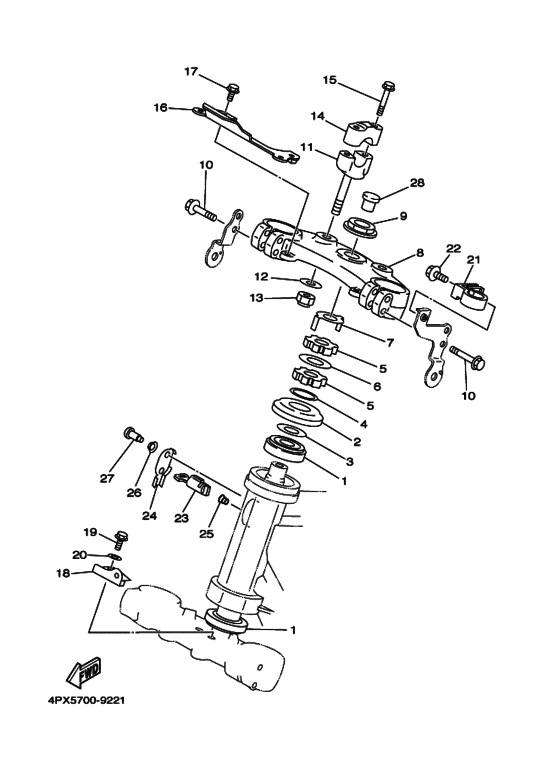

Steering Diagram Yamaha TT250R TT-R
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 4PXA
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TT250R (TT-R)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00078-00 Bearing(4Ew) |
93332-00078-00 |
from US $50.98 |
||
|
2
|
2
4GY-23416-00-00 Cover, Ball Race 2 |
4GY-23416-00-00 |
from US $10.93 |
||
|
3
|
3
90201-282R3-00 Washer, Plate |
90201-282R3-00 |
from US $5.38 |
||
|
4
|
4
90201-284R9-00 Washer, Plate |
90201-284R9-00 |
from US $9.78 |
||
|
5
|
5
90179-28543-00 Nut |
90179-28543-00 |
from US $14.45 |
||
|
6
|
6
90202-28216-00 Washer, Plate |
90202-28216-00 |
from US $3.83 |
||
|
7
|
7
4GY-23418-00-00 Washer, Special |
4GY-23418-00-00 |
from US $11.33 |
||
|
8
|
8
4RR-23435-00-00 Crown, Handle |
4RR-23435-00-00 |
from US $177.21 |
||
|
9
|
9
90179-24542-00 Nut |
90179-24542-00 |
from US $16.58 |
||
|
10
|
10
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
11
|
11
3SR-23442-01-00 Holder, Handle Lower |
3SR-23442-01-00 |
from US $47.67 |
||
|
12
|
12
929-90122-00-00 Washer, Plain |
929-90122-00-00 |
from US $1.36 |
||
|
13
|
13
95617-12100-00 Nut, U |
95617-12100-00 |
from US $3.12 |
||
|
14
|
14
1E6-23441-10-35 Holder, Handle UpperSL |
1E6-23441-10-35 |
from US $17.85 |
||
|
15
|
15
95024-08035-00 Bolt, Flange (Small Head) |
95024-08035-00 |
from US $1.56 |
||
|
16
|
16
4PX-2831V-10-00 Stay, Head Light 1 |
4PX-2831V-10-00 |
US $14.69 |
||
|
17
|
17
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
17
|
17
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.36 |
||
|
18
|
18
4PX-23174-00-00 Stay, Headlight |
4PX-23174-00-00 |
US $53.05 |
||
|
19
|
19
970-07060-12-00
Bolt
|
970-07060-12-00 |
— | ||
| replacement | |||||
|
19
|
19
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.21 |
||
|
20
|
20
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
21
|
21
4GY-23389-00-00
Guide, Cable
|
4GY-23389-00-00 |
— | ||
|
22
|
22
90105-05361-00 Bolt, Flange |
90105-05361-00 |
from US $1.28 |
||
|
23
|
23
4R3-23408-00-00 Steering Lock Assy |
4R3-23408-00-00 |
from US $77.92 |
||
| replacement | |||||
|
23
|
23
2A6-23408-00-00 Steering Lock Assy |
2A6-23408-00-00 |
from US $77.92 |
||
|
24
|
24
4GY-23484-00-00 Cap, Handle Lock |
4GY-23484-00-00 |
US $13.32 |
||
|
25
|
25
90502-09024-00 Spring, Conical |
90502-09024-00 |
from US $2.55 |
||
|
26
|
26
90208-04029-00 Washer, Conical Spring |
90208-04029-00 |
from US $1.98 |
||
|
27
|
27
90269-04003-00 Rivet |
90269-04003-00 |
from US $2.55 |
||
|
28
|
28
3K7-84154-10-00 Grommet |
3K7-84154-10-00 |
US $11.16 |
||
