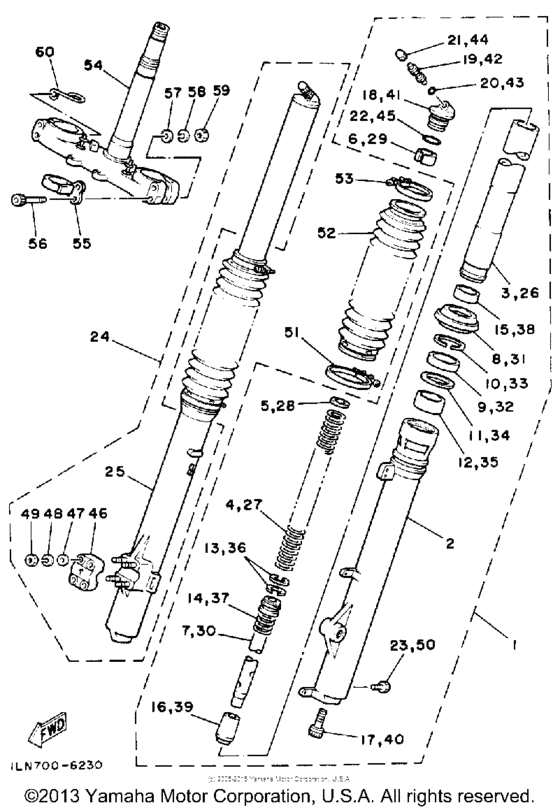

Front fork Diagram Yamaha TT350
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1LN-23102-00-00
Frt.fork Assembly Lh (L.h)
LH L.H |
1LN-23102-00-00 |
— | ||
|
2
|
2
1LN-23106-00-38 Outer Tube Comp.lh-Comp. (L.h |
1LN-23106-00-38 |
US $331.38 |
||
|
3
|
3
1LN-23110-00-00 Inner Tube Comp |
1LN-23110-00-00 |
US $312.34 |
||
|
4
|
4
1KX-85560-M0-00
Base Assembly
IN PRICE BOOK |
1KX-85560-M0-00 |
— | ||
|
5
|
5
34L-23142-00-00 Seat, Spring Upper |
34L-23142-00-00 |
from US $6.10 |
||
|
6
|
6
50T-23118-00-00 Spacer |
50T-23118-00-00 |
US $19.51 |
||
|
7
|
7
1KX-85560-M0-00
Base Assembly
IN PRICE BOOK |
1KX-85560-M0-00 |
— | ||
|
8
|
8
1LN-23144-00-00 Seal, Dust |
1LN-23144-00-00 |
from US $32.27 |
||
|
9
|
9
3MA-23145-00-00 Oil Seal |
3MA-23145-00-00 |
from US $24.79 |
||
|
10
|
10
34L-23153-00-00 Ring, Snap |
34L-23153-00-00 |
from US $11.90 |
||
|
11
|
11
34L-23147-00-00 O-Ring |
34L-23147-00-00 |
US $19.39 |
||
|
12
|
12
3AJ-23135-00-00 Metal, Slide 2 |
3AJ-23135-00-00 |
from US $47.68 |
||
|
13
|
13
54V-83550-01-00 Spdmtr CableIN PRICE BOOK |
54V-83550-01-00 |
from US $36.06 |
||
| replacement | |||||
|
13
|
13
3KJ-83550-01-00 Speedometer Cable AssyIN PRICE BOOK |
3KJ-83550-01-00 |
from US $25.16 |
||
|
14
|
14
34L-23151-00-00
Spring, Rebound
|
34L-23151-00-00 |
— | ||
|
15
|
15
55W-23171-00-00
Piston, Frt. Fork (50T-23171-
50T-23171- |
55W-23171-00-00 |
— | ||
|
16
|
16
1LN-23166-00-00
Spacer, Oil Lock
|
1LN-23166-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
18
|
18
34L-23111-00-00
Bolt, Cap
|
34L-23111-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
5K7-23190-00-00 Air Valve |
5K7-23190-00-00 |
US $57.87 |
||
|
20
|
20
3H3-23147-00-00 O-Ring |
3H3-23147-00-00 |
from US $1.84 |
||
| replacement | |||||
|
20
|
20
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
21
|
21
34L-23184-00-00 Cap, Air Valve |
34L-23184-00-00 |
from US $6.01 |
||
| replacements | |||||
|
21
|
21
4V1-23184-L0-00 Cap, Air Valve |
4V1-23184-L0-00 |
from US $11.05 |
||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
34L-23114-00-00 O-Ring |
34L-23114-00-00 |
from US $1.35 |
||
| replacements | |||||
|
22
|
22
932-10337-86-00
O-Ring
|
932-10337-86-00 |
— | ||
|
22
|
22
932-10330-06-00 O-RING |
932-10330-06-00 |
from US $1.39 |
||
|
23
|
23
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
24
|
24
1LN-23103-00-00
Frt.fork Assembly Rh
RH |
1LN-23103-00-00 |
— | ||
|
25
|
25
1LN-23107-00-38
Outer Tube Comp.rhcomp. (R.h)
|
1LN-23107-00-38 |
— | ||
|
26
|
26
1LN-23110-00-00 Inner Tube Comp |
1LN-23110-00-00 |
US $312.34 |
||
|
27
|
27
1KX-85560-M0-00
Base Assembly
IN PRICE BOOK |
1KX-85560-M0-00 |
— | ||
|
28
|
28
34L-23142-00-00 Seat, Spring Upper |
34L-23142-00-00 |
from US $6.10 |
||
|
29
|
29
50T-23118-00-00 Spacer |
50T-23118-00-00 |
US $19.51 |
||
|
30
|
30
1KX-85560-M0-00
Base Assembly
IN PRICE BOOK |
1KX-85560-M0-00 |
— | ||
|
31
|
31
1LN-23144-00-00 Seal, Dust |
1LN-23144-00-00 |
from US $32.27 |
||
|
32
|
32
3MA-23145-00-00 Oil Seal |
3MA-23145-00-00 |
from US $24.79 |
||
|
33
|
33
34L-23153-00-00 Ring, Snap |
34L-23153-00-00 |
from US $11.90 |
||
|
34
|
34
34L-23147-00-00 O-Ring |
34L-23147-00-00 |
US $19.39 |
||
|
35
|
35
3AJ-23135-00-00 Metal, Slide 2 |
3AJ-23135-00-00 |
from US $47.68 |
||
|
36
|
36
54V-83550-01-00 Spdmtr CableIN PRICE BOOK |
54V-83550-01-00 |
from US $36.06 |
||
| replacement | |||||
|
36
|
36
3KJ-83550-01-00 Speedometer Cable AssyIN PRICE BOOK |
3KJ-83550-01-00 |
from US $25.16 |
||
|
37
|
37
33Y-26111-10-00
Handlebar
IN PRICE BOOK |
33Y-26111-10-00 |
— | ||
| replacement | |||||
|
37
|
37
33Y-26111-11-00 HandlebarIN PRICE BOOK |
33Y-26111-11-00 |
from US $50.44 |
||
|
38
|
38
55W-23171-00-00
Piston, Frt. Fork (50T-23171-
50T-23171- |
55W-23171-00-00 |
— | ||
|
39
|
39
1KX-85560-M0-00
Base Assembly
IN PRICE BOOK |
1KX-85560-M0-00 |
— | ||
|
40
|
40
3M7-23181-00-00 Bolt, Hexagon Socket Head |
3M7-23181-00-00 |
from US $8.08 |
||
|
41
|
41
34L-23111-00-00
Bolt, Cap
|
34L-23111-00-00 |
— | ||
| replacement | |||||
|
41
|
41
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
5K7-23190-00-00 Air Valve |
5K7-23190-00-00 |
US $57.87 |
||
|
43
|
43
3H3-23147-00-00 O-Ring |
3H3-23147-00-00 |
from US $1.84 |
||
| replacement | |||||
|
43
|
43
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
44
|
44
34L-23184-00-00 Cap, Air Valve |
34L-23184-00-00 |
from US $6.01 |
||
| replacements | |||||
|
44
|
44
4V1-23184-L0-00 Cap, Air Valve |
4V1-23184-L0-00 |
from US $11.05 |
||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
34L-23114-00-00 O-Ring |
34L-23114-00-00 |
from US $1.35 |
||
| replacements | |||||
|
45
|
45
932-10337-86-00
O-Ring
|
932-10337-86-00 |
— | ||
|
45
|
45
932-10330-06-00 O-RING |
932-10330-06-00 |
from US $1.39 |
||
|
46
|
46
39W-23167-L0-00
Holder, Axle
|
39W-23167-L0-00 |
— | ||
|
47
|
47
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
48
|
48
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
49
|
49
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
50
|
50
2A6-23119-00-00 Plug, Drain |
2A6-23119-00-00 |
from US $9.49 |
||
|
51
|
51
39W-23489-L0-00 Band |
39W-23489-L0-00 |
from US $5.81 |
||
| replacement | |||||
|
51
|
51
3RW-23192-00-00 Band |
3RW-23192-00-00 |
from US $5.81 |
||
|
52
|
52
1LN-23191-00-00
Boot
|
1LN-23191-00-00 |
— | ||
|
53
|
53
1LN-23192-00-00
Band
|
1LN-23192-00-00 |
— | ||
|
54
|
54
1LN-23340-00-39
Under Bracket Comp
NO BUFF |
1LN-23340-00-39 |
— | ||
|
55
|
55
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
56
|
56
34L-23181-00-00
Bolt, Hex Sckt Head
|
34L-23181-00-00 |
— | ||
|
57
|
57
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
57
|
57
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
58
|
58
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
59
|
59
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
59
|
59
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
60
|
60
4V5-23389-00-00 Guide, Cable |
4V5-23389-00-00 |
from US $10.63 |
||
