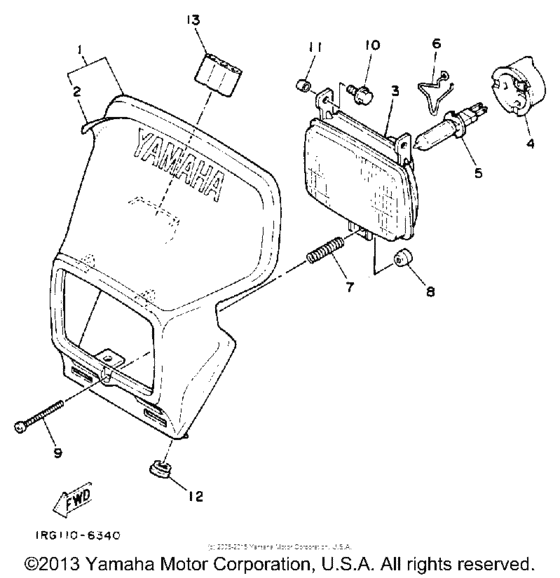

Headlight Diagram Yamaha TT350
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TT350
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RG-W8411-00-00
Body, Headlight
|
1RG-W8411-00-00 |
— | ||
|
2
|
2
1RG-84141-00-00
Emblem, Headlight
|
1RG-84141-00-00 |
— | ||
|
3
|
3
55U-84320-00-00
Lens Assembly
|
55U-84320-00-00 |
— | ||
|
4
|
4
55U-84397-00-00
Cover, Socket
|
55U-84397-00-00 |
— | ||
|
5
|
5
55U-84314-H0-00
Bulb, H.l.12V55W (12V-55W)
12V-55W |
55U-84314-H0-00 |
— | ||
|
6
|
6
55U-84324-00-00
Spring, Reflector
|
55U-84324-00-00 |
— | ||
|
7
|
7
55U-84332-00-00 Spring, Screw |
55U-84332-00-00 |
from US $4.96 |
||
|
8
|
8
50W-84334-00-00 Nut, Adjusting |
50W-84334-00-00 |
from US $3.09 |
||
|
9
|
9
55U-84331-00-00 Screw, Pan Head |
55U-84331-00-00 |
from US $3.26 |
||
| replacement | |||||
|
9
|
9
98580-04540-00 Screw, Pan Head |
98580-04540-00 |
from US $2.64 |
||
|
10
|
10
55U-84337-00-00 Bolt, Special |
55U-84337-00-00 |
from US $8.08 |
||
|
11
|
11
55U-84328-00-00 Spacer |
55U-84328-00-00 |
from US $2.64 |
||
|
12
|
12
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
13
|
13
4V5-83592-00-00
Damper
|
4V5-83592-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
