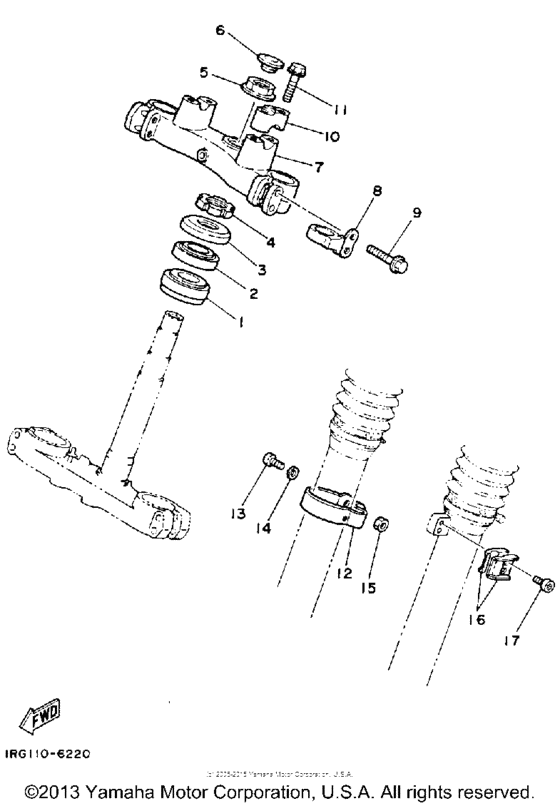

Steering Diagram Yamaha TT350
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 350
- Model
- TT350
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
93332-00008-00 Bearing |
93332-00008-00 |
from US $52.15 |
||
|
2
|
2
933-32000-01-00 Bearing |
933-32000-01-00 |
from US $22.62 |
||
|
3
|
3
3HE-23416-00-00 Cover, Ball Race 2 |
3HE-23416-00-00 |
from US $15.02 |
||
| replacement | |||||
|
3
|
3
1W1-23416-00-00 Cover, Ball Race 2 |
1W1-23416-00-00 |
from US $15.02 |
||
|
4
|
4
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
4
|
4
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
4
|
4
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
5
|
5
90179-22330-00
Nut
|
90179-22330-00 |
— | ||
|
6
|
6
34K-2319U-00-00
Cap
|
34K-2319U-00-00 |
— | ||
|
7
|
7
1LN-23435-01-98
Crown, Handle
|
1LN-23435-01-98 |
— | ||
|
8
|
8
3R4-23317-00-00 Holder, Cable |
3R4-23317-00-00 |
from US $25.08 |
||
|
9
|
9
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
|
10
|
10
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
11
|
11
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
12
|
12
26A-23318-00-00 Wire, Holder 1 |
26A-23318-00-00 |
from US $23.80 |
||
|
13
|
13
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
13
|
13
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
14
|
14
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
14
|
14
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
14
|
14
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
15
|
15
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
16
|
16
90465-16258-00 Clamp |
90465-16258-00 |
from US $8.36 |
||
|
17
|
17
913-16060-12-00
Bolt
|
913-16060-12-00 |
— | ||
| replacement | |||||
|
17
|
17
91317-06012-00 Bolt |
91317-06012-00 |
from US $1.28 |
||
