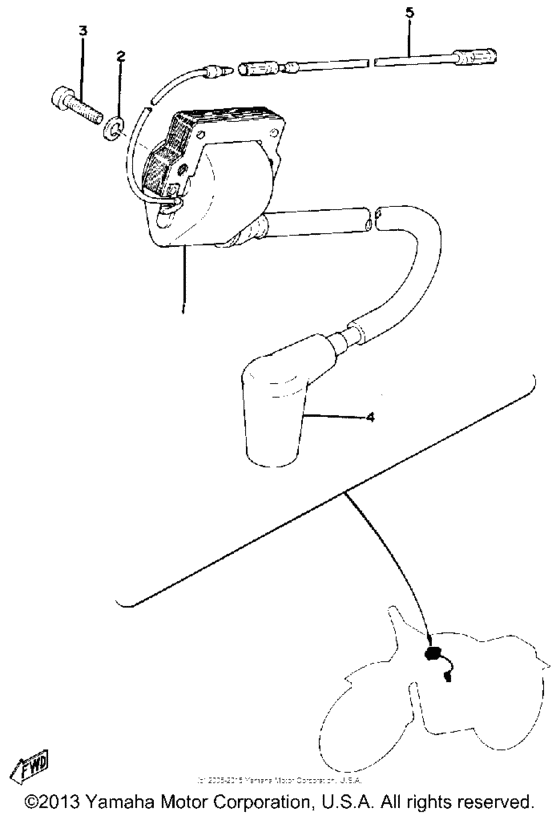

Electrical Diagram Yamaha TT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-82310-50-00
Ignition Coil Assembly
|
583-82310-50-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
3
|
3
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
4
|
4
56J-82370-00-00 Plug Cap Assy |
56J-82370-00-00 |
from US $16.43 |
||
|
5
|
5
583-82521-00-00
Wire, Lead
|
583-82521-00-00 |
— | ||
