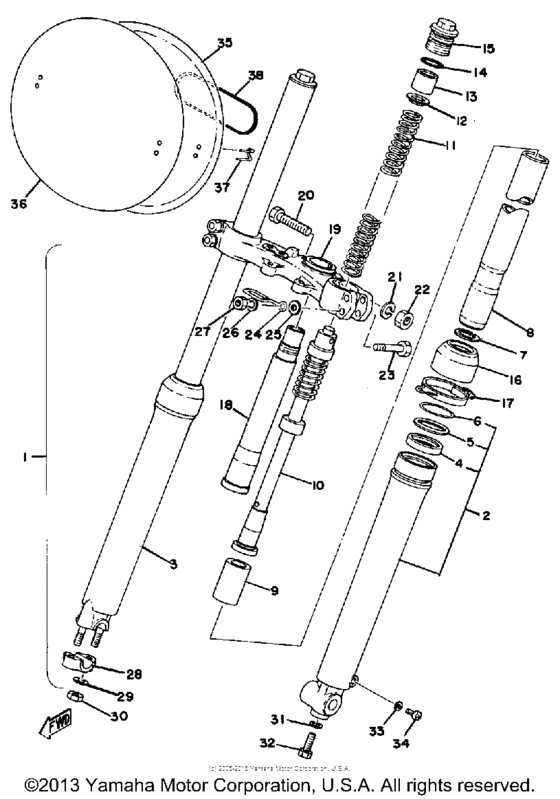

Front fork Diagram Yamaha TT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-23101-00-00
Front Fork Assembly
|
583-23101-00-00 |
— | ||
|
2
|
2
583-23126-01-00
Tube, Outer 1
|
583-23126-01-00 |
— | ||
|
3
|
3
583-23136-00-00
Tube, Outer 2
|
583-23136-00-00 |
— | ||
|
4
|
4
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
5
|
5
341-23146-50-00 Washer, Oil Seal |
341-23146-50-00 |
from US $10.58 |
||
|
6
|
6
341-23156-50-00 Clip, Oil Seal |
341-23156-50-00 |
from US $19.69 |
||
|
7
|
7
93450-30039-00
Circlip, Inner
|
93450-30039-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
583-23124-00-00
Tube, Inner 1
|
583-23124-00-00 |
— | ||
|
9
|
9
583-23171-00-00
Piston, Front Fork
|
583-23171-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
583-23170-00-00
Cylinder, Frtfrk
|
583-23170-00-00 |
— | ||
|
11
|
11
583-23141-00-00
Spring, Front Fork
|
583-23141-00-00 |
— | ||
|
12
|
12
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
13
|
13
583-23118-00-00
Spacer
|
583-23118-00-00 |
— | ||
|
14
|
14
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
15
|
15
2W6-23111-00-00
Bolt, Cap (583-23111-00)
583-23111-00 |
2W6-23111-00-00 |
— | ||
|
16
|
16
583-23144-00-00
Seal, Dust
|
583-23144-00-00 |
— | ||
|
17
|
17
583-23318-00-00
Holder, Cable 1
|
583-23318-00-00 |
— | ||
|
18
|
18
1E6-23341-00-00
Shaft, Steering
|
1E6-23341-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
2H1-23340-00-33
Under Bracket
|
2H1-23340-00-33 |
— | ||
|
20
|
20
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
22
|
22
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
24
|
24
583-23317-00-00
Holder, Cable
|
583-23317-00-00 |
— | ||
|
25
|
25
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
901-70081-80-00
Nut, Hexagon
|
901-70081-80-00 |
— | ||
| replacement | |||||
|
27
|
27
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
28
|
28
291-23167-61-00
Holder, Axle (291-23167-60)
291-23167-60 |
291-23167-61-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
291-23167-60 |
999-99999-99-00 |
— | ||
|
29
|
29
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
29
|
29
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
30
|
30
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
30
|
30
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
31
|
31
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
32
|
32
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
32
|
32
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
33
|
33
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
34
|
34
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
35
|
35
583-23485-00-00
Plate, Number
|
583-23485-00-00 |
— | ||
|
36
|
36
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
|
37
|
37
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
38
|
38
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
|
39
|
39
583-23118-00-00
Spacer
|
583-23118-00-00 |
— | ||
