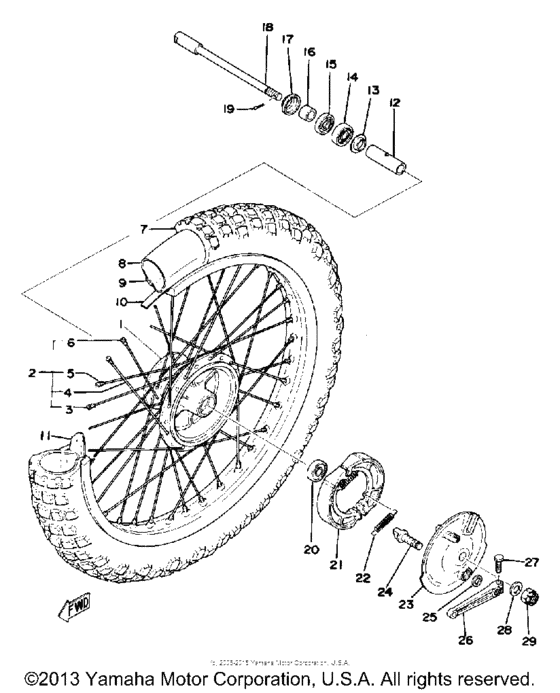

Front wheel Diagram Yamaha TT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
322-25111-00-98
Hub, Front
|
322-25111-00-98 |
— | ||
|
2
|
2
322-25104-01-00
Spoke Set, Front
|
322-25104-01-00 |
— | ||
|
3
|
3
322-25196-90-00
Spoke Set, Inner 1
|
322-25196-90-00 |
— | ||
|
4
|
4
322-25197-90-00
Spoke Set, Outer 1
|
322-25197-90-00 |
— | ||
|
5
|
5
322-25179-90-00
Spoke Set, Inner 2
|
322-25179-90-00 |
— | ||
|
6
|
6
322-25189-90-00
Spoke Set, Outer 2
|
322-25189-90-00 |
— | ||
|
7
|
7
941-30213-A4-00
300-21 M1B (Tt)
M1B TT |
941-30213-A4-00 |
— | ||
|
8
|
8
942-27211-01-00
Tube (Mcs 2.75/3.00-21 Tr6)
2.75/3.00-21 TR6 |
942-27211-01-00 |
— | ||
| replacement | |||||
|
8
|
8
942-27211-23-00 Tube (Mcs 2.75/3.00-21 Tr6)2.75/3.00-21 TR6 |
942-27211-23-00 |
US $54.59 |
||
|
9
|
9
944-16213-26-00 Rim 1.60X211.60X21 |
944-16213-26-00 |
US $623.56 |
||
|
10
|
10
943-27210-24-00 Band, Rim |
943-27210-24-00 |
US $4.39 |
||
|
11
|
11
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
12
|
12
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
13
|
13
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
14
|
14
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
14
|
14
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.05 |
||
|
15
|
15
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
16
|
16
322-25183-00-00
New Genuine Part
IN PRICE BOOK 322- |
322-25183-00-00 |
— | ||
| replacement | |||||
|
16
|
16
903-87154-18-00
Collar (322-25183-00)
IN PRICE BOOK 322- |
903-87154-18-00 |
— | ||
|
17
|
17
322-25118-00-00 Cover, Hub Dust |
322-25118-00-00 |
from US $10.63 |
||
|
18
|
18
583-25181-00-00
Axle, Wheel
|
583-25181-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
19
|
19
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.39 |
||
|
20
|
20
933-06202-04-00 Bearing |
933-06202-04-00 |
from US $12.06 |
||
|
21
|
21
322-W2535-00-00 Brake Shoe Kit |
322-W2535-00-00 |
from US $41.19 |
||
| replacement | |||||
|
21
|
21
322-W253A-10-00 PISTON 1 O/S 0.25 |
322-W253A-10-00 |
from US $41.42 |
||
|
22
|
22
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
23
|
23
483-25121-00-98
Plate, Brake Shoe
|
483-25121-00-98 |
— | ||
|
24
|
24
23X-25151-00-00
Camshaft
|
23X-25151-00-00 |
— | ||
|
25
|
25
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
26
|
26
322-25155-00-00
Lever, Camshaft 1
|
322-25155-00-00 |
— | ||
|
27
|
27
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
27
|
27
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
28
|
28
92990-14200-00 Washer, Plain |
92990-14200-00 |
from US $1.66 |
||
|
29
|
29
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
29
|
29
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $7.42 |
||
