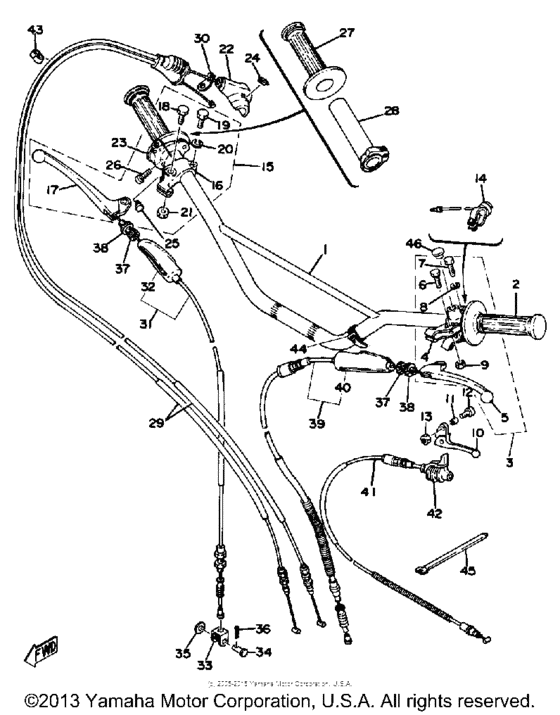

Handlebar - cable Diagram Yamaha TT500
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1T1-26111-00-00
Handlebar
|
1T1-26111-00-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
583-82910-01-00
Lever Holder Assembly 1
|
583-82910-01-00 |
— | ||
|
4
|
4
583-82911-01-98 Holder, Lever 1 |
583-82911-01-98 |
from US $54.85 |
||
| replacement | |||||
|
4
|
4
583-82911-02-00 Holder, Lever 1 |
583-82911-02-00 |
from US $54.85 |
||
|
5
|
5
1J3-83912-20-00 Lever L |
1J3-83912-20-00 |
from US $27.77 |
||
|
6
|
6
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
6
|
6
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
7
|
7
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
7
|
7
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
10
|
10
583-83981-00-00 Lever, Decompression |
583-83981-00-00 |
from US $18.99 |
||
|
11
|
11
583-83913-00-00 Collar, Lever 1 |
583-83913-00-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
5BE-83913-00-00 Collar, Lever 1 |
5BE-83913-00-00 |
from US $2.83 |
||
|
12
|
12
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
12
|
12
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
12
|
12
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
13
|
13
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
13
|
13
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
14
|
14
583-83976-01-00
Switch, Handle 1
|
583-83976-01-00 |
— | ||
|
15
|
15
583-82920-01-00
Lever Holder Assembly 2
|
583-82920-01-00 |
— | ||
|
16
|
16
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
17
|
17
2A6-83922-00-00 Lever R |
2A6-83922-00-00 |
from US $24.23 |
||
|
18
|
18
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
18
|
18
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
19
|
19
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
19
|
19
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
21
|
21
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
22
|
22
583-83986-00-00
Case, Switch Upper
|
583-83986-00-00 |
— | ||
|
23
|
23
583-83987-00-00
Case, Switch Lower
|
583-83987-00-00 |
— | ||
|
24
|
24
583-83956-00-00
Cap 1
|
583-83956-00-00 |
— | ||
|
25
|
25
583-83957-00-00
Cap 2
|
583-83957-00-00 |
— | ||
|
26
|
26
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
26
|
26
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
26
|
26
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
27
|
27
583-26242-00-00 Grip Rh (R.h.)RH R.H. |
583-26242-00-00 |
from US $31.17 |
||
|
28
|
28
2H0-26243-00-00
Tube, Thrtl Guide
|
2H0-26243-00-00 |
— | ||
|
29
|
29
583-26301-00-00 Throttle Cable AssemblyThrottle wire ass`y |
583-26301-00-00 |
from US $116.57 |
||
| replacement | |||||
|
29
|
29
583-26301-01-00 Throttle Cable Assy |
583-26301-01-00 |
US $85.90 |
||
|
30
|
30
583-26398-00-00
Washer
|
583-26398-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
1G8-26341-01-00
Front Brake Cable
IN PRICE BOOK 1150 |
1G8-26341-01-00 |
— | ||
|
32
|
32
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
32
|
32
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
33
|
33
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
34
|
34
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
35
|
35
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
36
|
36
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
37
|
37
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
37
|
37
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
38
|
38
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
38
|
38
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
39
|
39
583-26335-01-00
Cable, Clutch (1100Mm)
1100MM |
583-26335-01-00 |
— | ||
|
40
|
40
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
40
|
40
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
41
|
41
583-26331-00-00
Cable, Starter 1 (800Mm)
800MM |
583-26331-00-00 |
— | ||
|
42
|
42
583-26352-00-00 Cover, Decompression Cable |
583-26352-00-00 |
from US $16.15 |
||
|
43
|
43
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
44
|
44
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
45
|
45
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
45
|
45
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
45
|
45
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
46
|
46
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
