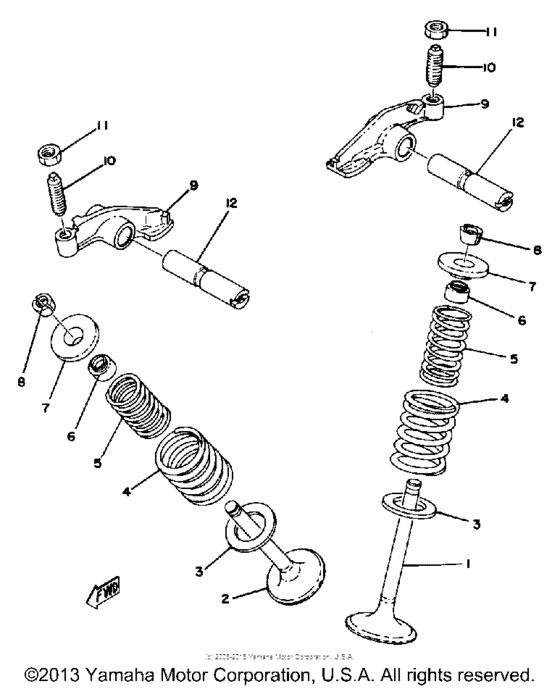

Valve Diagram Yamaha TT500
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-12111-00-00
Valve, Intake
|
583-12111-00-00 |
— | ||
|
2
|
2
583-12121-00-00 Valve, Exhaust |
583-12121-00-00 |
from US $175.75 |
||
|
3
|
3
256-12116-01-00
Seat, Valve Spring
|
256-12116-01-00 |
— | ||
|
4
|
4
90501-44455-00 Spring, Compression |
90501-44455-00 |
from US $11.37 |
||
|
5
|
5
90501-31454-00 Spring, Compression |
90501-31454-00 |
from US $7.65 |
||
|
6
|
6
341-12119-02-00 Seal, Valve Stem |
341-12119-02-00 |
from US $13.60 |
||
|
7
|
7
256-12117-02-00 Retainer, Valve Spr |
256-12117-02-00 |
from US $14.17 |
||
|
8
|
8
341-12118-00-00 Cotter, Valve |
341-12118-00-00 |
from US $4.39 |
||
|
9
|
9
583-12151-00-00 Arm, Valve Rocker |
583-12151-00-00 |
from US $149.94 |
||
|
10
|
10
901-49080-98-00 Screw,valve Adj |
901-49080-98-00 |
from US $14.94 |
||
| replacement | |||||
|
10
|
10
3HT-12159-R0-00 Screw, Valve Adjusting |
3HT-12159-R0-00 |
from US $15.58 |
||
|
11
|
11
90170-08173-00 Nut |
90170-08173-00 |
from US $1.39 |
||
|
12
|
12
583-12156-01-00 Shaft, Rocker 2 |
583-12156-01-00 |
from US $28.19 |
||
| replacement | |||||
|
12
|
12
583-12156-02-00 Shaft, Rocker 2 |
583-12156-02-00 |
from US $28.19 |
||
