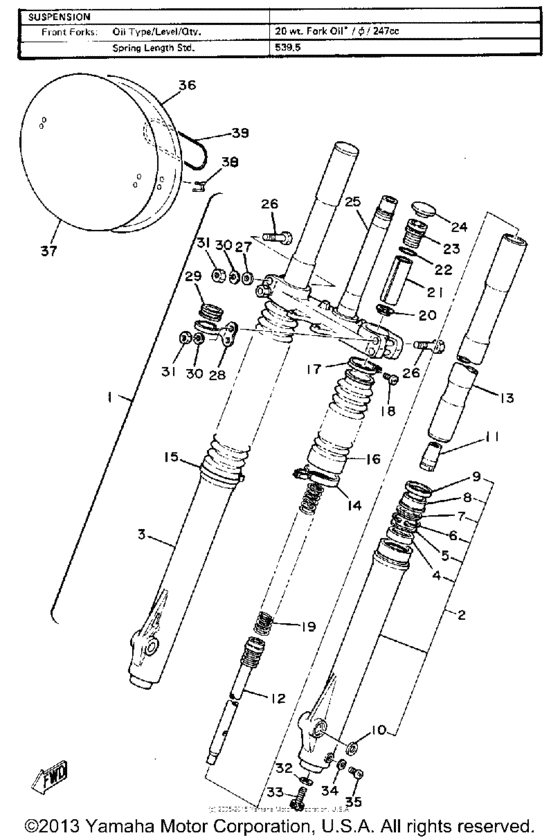

Front fork Diagram Yamaha TT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2Y0-23101-00-00
Front Fork Assembly
|
2Y0-23101-00-00 |
— | ||
|
2
|
2
2W6-23126-00-00
Tube, Outer 1
|
2W6-23126-00-00 |
— | ||
|
3
|
3
2W6-23136-00-00
Tube, Outer 2
|
2W6-23136-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
5
|
5
509-23146-L0-00
Washer, Oil Seal
|
509-23146-L0-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
1W1-23156-L0-00
Clip, Oil Seal
|
1W1-23156-L0-00 |
— | ||
|
7
|
7
1W1-23153-L0-00
Ring, Snap
|
1W1-23153-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
1G8-23144-L1-00 Seal, Dust |
1G8-23144-L1-00 |
from US $28.28 |
||
|
9
|
9
999-99015-10-00
Cover, Dust Seal
|
999-99015-10-00 |
— | ||
|
10
|
10
1W1-23168-L0-00
Cap, Front Fork
|
1W1-23168-L0-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
2Y0-23173-00-00
Spindle, Taper
|
2Y0-23173-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2Y0-23170-00-00
Cylinder, Frtfrk
|
2Y0-23170-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
2Y0-23124-00-00
Tube, Inner 1
|
2Y0-23124-00-00 |
— | ||
|
14
|
14
1W1-23318-L0-00
Holder, Cable 1
|
1W1-23318-L0-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
509-23489-L0-00
Band
|
509-23489-L0-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2N6-23191-00-00 Boot, Front Fork |
2N6-23191-00-00 |
from US $49.03 |
||
|
17
|
17
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
18
|
18
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
19
|
19
2Y0-23141-00-00
Spring, Front Fork
|
2Y0-23141-00-00 |
— | ||
|
20
|
20
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
21
|
21
1T2-23118-00-00
Spacer
|
1T2-23118-00-00 |
— | ||
|
22
|
22
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
23
|
23
1U6-23111-M1-00 Bolt, Cap (1U6-23111-M0)1U6-23111-M0 |
1U6-23111-M1-00 |
from US $25.61 |
||
|
24
|
24
1U6-23168-M1-00 Cap, Front Fork |
1U6-23168-M1-00 |
from US $10.31 |
||
|
25
|
25
2Y0-23340-00-33
Under Bracket
|
2Y0-23340-00-33 |
— | ||
|
26
|
26
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
27
|
27
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
27
|
27
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
28
|
28
1W1-23317-01-00
Holder, Cable
|
1W1-23317-01-00 |
— | ||
|
29
|
29
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
|
30
|
30
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
31
|
31
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
31
|
31
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
32
|
32
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
33
|
33
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
33
|
33
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
34
|
34
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
35
|
35
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
35
|
35
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
35
|
35
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
35
|
35
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
36
|
36
583-23485-00-00
Plate, Number
|
583-23485-00-00 |
— | ||
|
37
|
37
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
|
38
|
38
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
39
|
39
932-10693-55-00
O-Ring (3.0-69.0)
3.0-69.0 |
932-10693-55-00 |
— | ||
