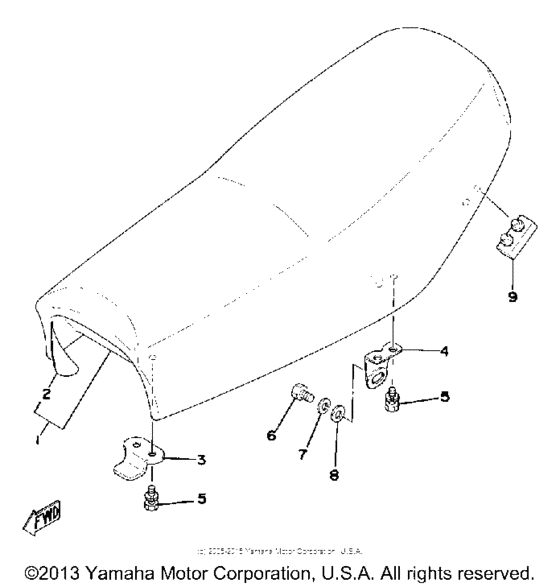

Seat Diagram Yamaha TT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2Y0-24770-90-00
Semi-Dbl Seat Assembly
|
2Y0-24770-90-00 |
— | ||
|
2
|
2
2Y0-24731-00-00
Cover, Double Seat
|
2Y0-24731-00-00 |
— | ||
|
3
|
3
2Y0-24748-00-00 Bracket, Seat |
2Y0-24748-00-00 |
US $18.84 |
||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
1T1-24738-00-00
Bracket, Seat
|
1T1-24738-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
90101-06304-00 Bolt |
90101-06304-00 |
from US $4.82 |
||
|
6
|
6
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
6
|
6
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
7
|
7
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
9
|
9
583-24724-00-00
Damper, Seat
|
583-24724-00-00 |
— | ||
