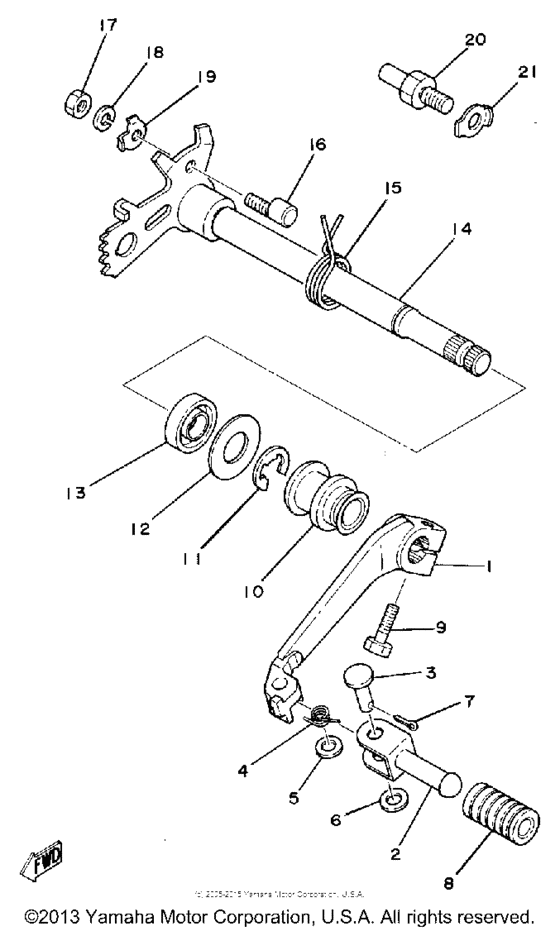

Shift shaft (2) Diagram Yamaha TT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2Y0-18111-00-33 Shift Pedal Assy |
2Y0-18111-00-33 |
from US $46.84 |
||
| replacement | |||||
|
1
|
1
2HF-18110-02-00 Shift Pedal Assy |
2HF-18110-02-00 |
from US $51.61 |
||
|
2
|
2
1W6-18162-00-00
Pedal, Shift
|
1W6-18162-00-00 |
— | ||
|
3
|
3
90240-06057-00 Pin, Clevis |
90240-06057-00 |
from US $3.09 |
||
|
4
|
4
905-08163-51-00
Spring, Torsion
|
905-08163-51-00 |
— | ||
|
5
|
5
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
5
|
5
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
5
|
5
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
5
|
5
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
7
|
7
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
7
|
7
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
8
|
8
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $7.21 |
||
|
9
|
9
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
10
|
10
583-18131-00-00 Boot, Sealing |
583-18131-00-00 |
from US $10.06 |
||
|
11
|
11
99001-12600-00 Circlip |
99001-12600-00 |
from US $1.56 |
||
|
12
|
12
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
13
|
13
93109-14010-00 Oil Seal, Sdo-Type |
93109-14010-00 |
from US $5.74 |
||
|
14
|
14
2J2-18103-00-00 Shaft, Shift |
2J2-18103-00-00 |
from US $67.15 |
||
|
15
|
15
90508-32052-00 Spring, Torsion (214-18124-00)214-18124-00 |
90508-32052-00 |
from US $6.09 |
||
|
16
|
16
90149-06017-00 Screw, Spec''l Shape (214-18186214-18186 |
90149-06017-00 |
from US $4.96 |
||
|
17
|
17
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
90215-06016-00 Washer, Lock |
90215-06016-00 |
from US $1.84 |
||
|
20
|
20
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
20
|
20
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
21
|
21
90215-08115-00 Washer, Lock |
90215-08115-00 |
from US $1.70 |
||
