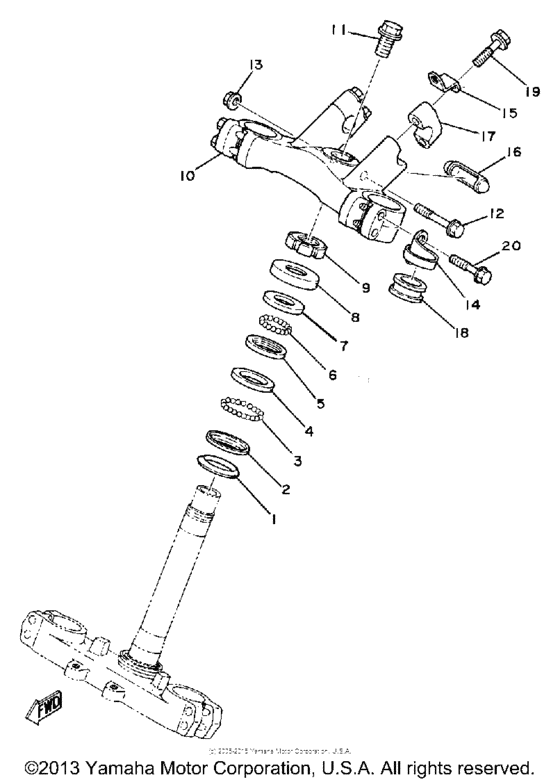

Steering Diagram Yamaha TT500
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
2
|
2
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
2
|
2
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
3
|
3
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
4
|
4
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
4
|
4
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
5
|
5
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
5
|
5
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
6
|
6
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
6
|
6
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
7
|
7
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
7
|
7
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
8
|
8
2Y0-23416-00-00
Cover, Ball Race 2
|
2Y0-23416-00-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
5X3-23435-01-98
Crown, Handle
|
5X3-23435-01-98 |
— | ||
|
11
|
11
90105-14136-00 Bolt, Flange |
90105-14136-00 |
from US $2.77 |
||
| replacements | |||||
|
11
|
11
901-05142-20-00 Bolt, Flange |
901-05142-20-00 |
from US $3.68 |
||
|
11
|
11
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
12
|
12
95811-08055-00 Bolt, Flange |
95811-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
12
|
12
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
13
|
13
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
13
|
13
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
13
|
13
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
14
|
14
1W1-23317-01-00
Holder, Cable
|
1W1-23317-01-00 |
— | ||
|
15
|
15
1T2-23389-00-00
Guide, Cable
|
1T2-23389-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
583-23469-00-00
Cap, Bolt
|
583-23469-00-00 |
— | ||
|
17
|
17
1E6-23441-00-00 Holder, Handle Upr (1E6-23441-0 |
1E6-23441-00-00 |
from US $20.97 |
||
|
18
|
18
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
|
19
|
19
95811-08035-00 Bolt, Flange (95821-08035-00) |
95811-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
20
|
20
90105-08091-00 Bolt, Flange |
90105-08091-00 |
from US $1.56 |
||
| replacement | |||||
|
20
|
20
958-14080-40-00 Bolt, Flange |
958-14080-40-00 |
from US $1.56 |
||
