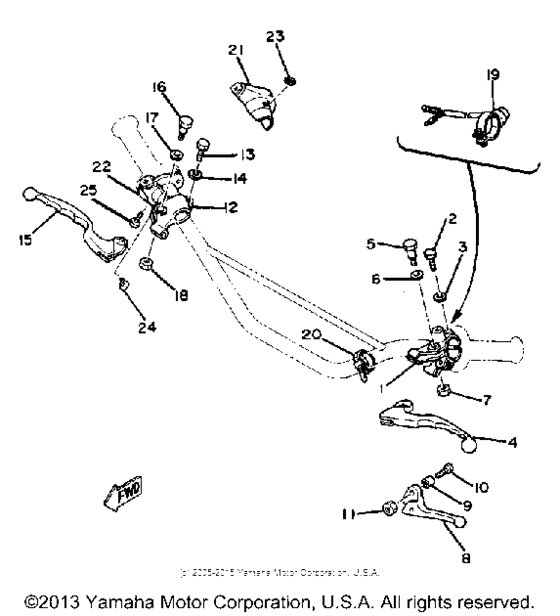

Handle switch & lever Diagram Yamaha TT500
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
583-82911-02-00 Holder, Lever 1 |
583-82911-02-00 |
from US $54.85 |
||
|
2
|
2
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
2
|
2
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
4
|
4
2H0-83912-30-00 Lever L |
2H0-83912-30-00 |
from US $19.69 |
||
| replacement | |||||
|
4
|
4
2H0-83912-31-00 Lever 1 |
2H0-83912-31-00 |
from US $19.69 |
||
|
5
|
5
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
5
|
5
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
6
|
6
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
7
|
7
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
8
|
8
583-83981-00-00 Lever, Decompression |
583-83981-00-00 |
from US $18.99 |
||
|
9
|
9
583-83913-00-00 Collar, Lever 1 |
583-83913-00-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
5BE-83913-00-00 Collar, Lever 1 |
5BE-83913-00-00 |
from US $2.83 |
||
|
10
|
10
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
10
|
10
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
11
|
11
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
12
|
12
233-82921-31-00 Holder, Lever 2 |
233-82921-31-00 |
from US $68.11 |
||
|
13
|
13
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
13
|
13
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
2H0-83922-30-00 Lever R |
2H0-83922-30-00 |
from US $19.27 |
||
| replacement | |||||
|
15
|
15
2H0-83922-31-00 Lever 2 |
2H0-83922-31-00 |
from US $18.86 |
||
|
16
|
16
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
16
|
16
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
|
17
|
17
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
18
|
18
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
19
|
19
2Y0-83976-00-00 Switch, Handle 1 |
2Y0-83976-00-00 |
from US $39.92 |
||
| replacement | |||||
|
19
|
19
53Y-83976-00-00 Switch, Handle 1 |
53Y-83976-00-00 |
from US $35.51 |
||
|
20
|
20
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
21
|
21
583-83986-00-00
Case, Switch Upper
|
583-83986-00-00 |
— | ||
|
22
|
22
583-83987-00-00
Case, Switch Lower
|
583-83987-00-00 |
— | ||
|
23
|
23
583-83956-00-00
Cap 1
|
583-83956-00-00 |
— | ||
|
24
|
24
583-83957-00-00
Cap 2
|
583-83957-00-00 |
— | ||
|
25
|
25
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
25
|
25
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
25
|
25
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
