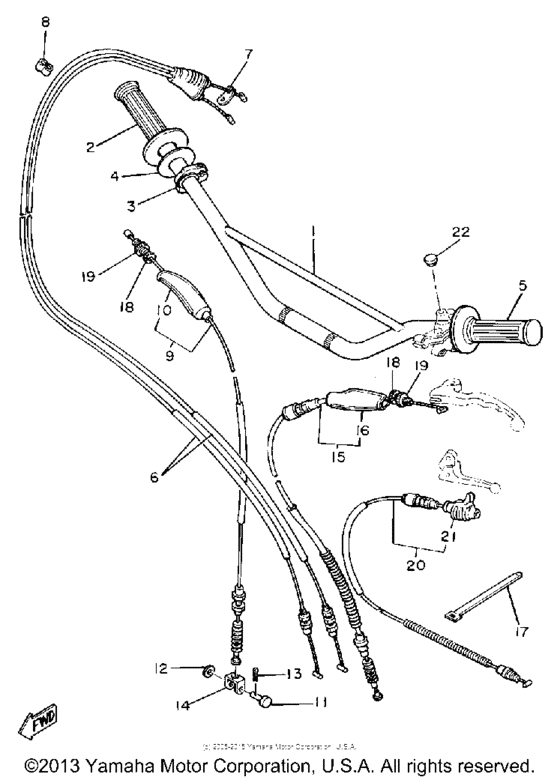

Handlebar-cable Diagram Yamaha TT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2A8-26111-00-00 Handlebar |
2A8-26111-00-00 |
from US $138.16 |
||
|
2
|
2
583-26242-00-00 Grip Rh (R.h.)RH R.H. |
583-26242-00-00 |
from US $31.17 |
||
|
3
|
3
2H0-26243-00-00
Tube, Thrtl Guide
|
2H0-26243-00-00 |
— | ||
|
4
|
4
1W1-26249-00-00
Ring, Leaf
|
1W1-26249-00-00 |
— | ||
|
5
|
5
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
6
|
6
583-26301-00-00 Throttle Cable AssemblyThrottle wire ass`y |
583-26301-00-00 |
from US $116.57 |
||
| replacement | |||||
|
6
|
6
583-26301-01-00 Throttle Cable Assy |
583-26301-01-00 |
US $85.90 |
||
|
7
|
7
583-26398-00-00
Washer
|
583-26398-00-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
9
|
9
1W1-26341-01-00
Cable, Brake
|
1W1-26341-01-00 |
— | ||
|
10
|
10
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
10
|
10
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
11
|
11
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
12
|
12
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
13
|
13
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
13
|
13
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
14
|
14
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
15
|
15
583-26335-01-00
Cable, Clutch (1100Mm)
1100MM |
583-26335-01-00 |
— | ||
|
16
|
16
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
16
|
16
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
17
|
17
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
17
|
17
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
17
|
17
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
18
|
18
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
20
|
20
583-26331-00-00
Cable, Starter 1 (800Mm)
800MM |
583-26331-00-00 |
— | ||
|
21
|
21
583-26352-00-00 Cover, Decompression Cable |
583-26352-00-00 |
from US $16.15 |
||
|
22
|
22
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
