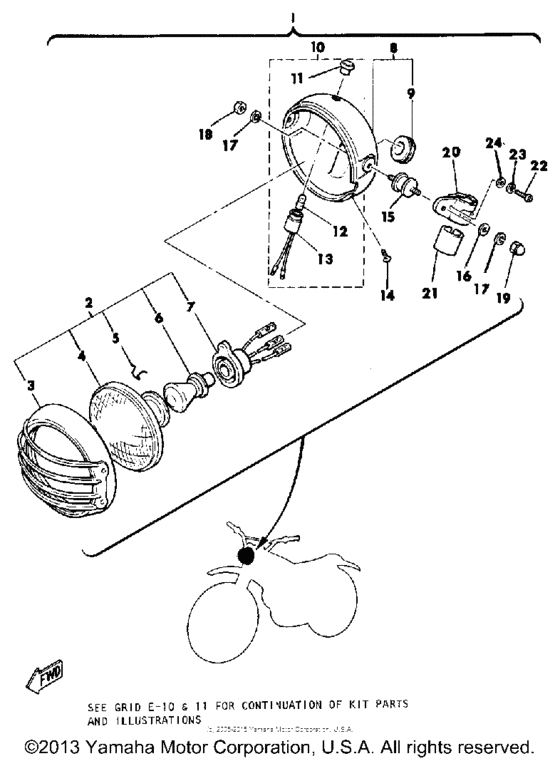

Lighting kit (Optional parts) Diagram Yamaha TT500
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 500
- Model
- TT500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
ACC-01100-63-00
Tt500Fgh Light Kit
|
ACC-01100-63-00 |
— | ||
|
2
|
2
493-84110-61-00
New Genuine Part
IN PRICE BOOK N/A |
493-84110-61-00 |
— | ||
|
3
|
3
493-84115-60-00
Rim, Headlight
|
493-84115-60-00 |
— | ||
|
4
|
4
434-84120-60-00
Lens Assembly
|
434-84120-60-00 |
— | ||
|
5
|
5
195-84324-00-00 Spring, Reflector |
195-84324-00-00 |
from US $3.40 |
||
|
6
|
6
214-84114-60-00 Bulb, Hl6V35/35W |
214-84114-60-00 |
from US $9.35 |
||
|
7
|
7
214-84112-61-00 Socket |
214-84112-61-00 |
US $81.68 |
||
|
8
|
8
434-84130-61-33
Body Assembly, Headlight
|
434-84130-61-33 |
— | ||
|
9
|
9
150-84153-00-00 Grommet, Wrhrnes |
150-84153-00-00 |
from US $14.45 |
||
|
10
|
10
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
11
|
11
256-84357-61-00
Body, Pilot Light
|
256-84357-61-00 |
— | ||
|
12
|
12
104-83517-10-00 Bulb |
104-83517-10-00 |
from US $4.53 |
||
|
13
|
13
214-84150-61-00
Socket Cord Assembly 2
|
214-84150-61-00 |
— | ||
|
14
|
14
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
15
|
15
1K7-84137-60-00
Bolt, Special
|
1K7-84137-60-00 |
— | ||
|
16
|
16
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
19
|
19
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
20
|
20
1K7-84118-60-33
Stay, Headlight 1
|
1K7-84118-60-33 |
— | ||
|
21
|
21
1K7-84136-61-00
Damper, Hdlt Stay
|
1K7-84136-61-00 |
— | ||
|
22
|
22
98580-06018-00 Screw, Pan Head (N151) |
98580-06018-00 |
US $3.26 |
||
| replacement | |||||
|
22
|
22
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
24
|
24
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
24
|
24
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.39 |
||
|
24
|
24
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
24
|
24
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
25
|
25
434-84500-64-00
Taillight Assembly
|
434-84500-64-00 |
— | ||
|
26
|
26
434-84521-69-00 Lens, Taillight |
434-84521-69-00 |
from US $22.90 |
||
|
27
|
27
434-84515-61-00 Rim,taillight |
434-84515-61-00 |
US $15.25 |
||
| replacement | |||||
|
27
|
27
5AU-83323-01-00 Rim,lens |
5AU-83323-01-00 |
US $15.25 |
||
|
28
|
28
122-84514-30-00 Bulb 6V21Cp(1154)6V21CP1154 |
122-84514-30-00 |
US $4.11 |
||
| replacement | |||||
|
28
|
28
122-84514-30-XX
BULB 6V21CP(1154)
6V21CP1154 |
122-84514-30-XX |
— | ||
|
29
|
29
434-84517-61-00
Cord, Taillight
|
434-84517-61-00 |
— | ||
|
30
|
30
434-84522-62-00 Washer, Plate |
434-84522-62-00 |
from US $2.13 |
||
| replacement | |||||
|
30
|
30
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
31
|
31
434-84524-62-00 Screw, Lens Fitting |
434-84524-62-00 |
US $2.83 |
||
| replacement | |||||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
32
|
32
434-84519-64-00
Bracket, Taillight
|
434-84519-64-00 |
— | ||
|
33
|
33
434-84500-64-00
Taillight Assembly
|
434-84500-64-00 |
— | ||
|
34
|
34
434-84557-60-00
Collar
|
434-84557-60-00 |
— | ||
|
35
|
35
434-84525-01-00
Washer, Special
|
434-84525-01-00 |
— | ||
|
36
|
36
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
37
|
37
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
38
|
38
904-62080-36-00
Clamp
|
904-62080-36-00 |
— | ||
|
39
|
39
1T1-83973-00-00
Switch, Handle 3
|
1T1-83973-00-00 |
— | ||
|
40
|
40
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
41
|
41
2Y0-82590-90-00
Wire Harness Assembly
|
2Y0-82590-90-00 |
— | ||
|
42
|
42
583-90274-00-00
Clamp Kit
|
583-90274-00-00 |
— | ||
