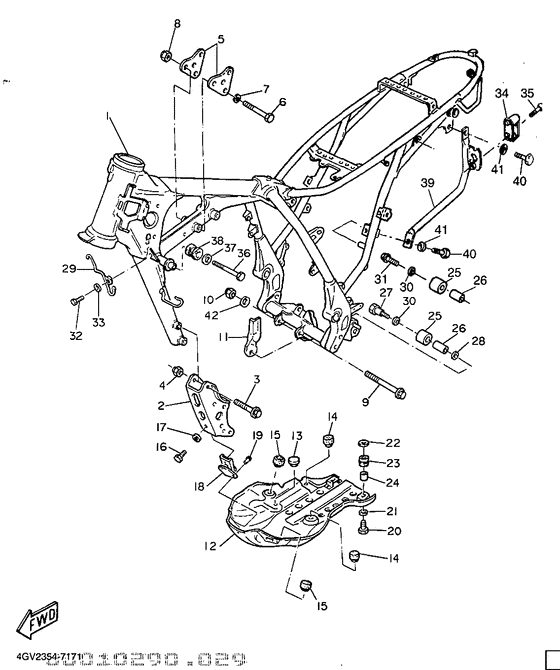

Frame Diagram Yamaha TT600
- Year
- 1998
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4LW4
- Sales region
- Europe (General) (999)
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4GV-F1110-12-UJ
Frame Comp
Radical white |
4GV-F1110-12-UJ |
— | ||
| replacement | |||||
|
01
|
01
4GV-F1110-13-UJ
Frame Comp
Radical white |
4GV-F1110-13-UJ |
— | ||
|
02
|
02
4GV-F1316-00-UJ
Stay, Engine 3
Radical white |
4GV-F1316-00-UJ |
— | ||
|
03
|
03
90105-10869-00
Bolt, Washer Based
|
90105-10869-00 |
— | ||
| replacement | |||||
|
03
|
03
90105-10286-00 Bolt, Flange |
90105-10286-00 |
from US $4.53 |
||
|
04
|
04
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
05
|
05
4GV-F1315-00-00
Stay, Engine 2
|
4GV-F1315-00-00 |
— | ||
|
06
|
06
97017-10080-00 Bolt,washer Based |
97017-10080-00 |
from US $7.94 |
||
| replacement | |||||
|
06
|
06
90105-10M75-00 Bolt, Flange |
90105-10M75-00 |
from US $8.22 |
||
|
07
|
07
92907-10100-00 Washer, Spring |
92907-10100-00 |
from US $1.39 |
||
|
08
|
08
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
09
|
09
95817-10110-00 Bolt, Flange(6Ta) |
95817-10110-00 |
from US $3.54 |
||
|
10
|
10
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
11
|
11
4GV-F176E-00-00
Plate
|
4GV-F176E-00-00 |
— | ||
|
12
|
12
4GV-F1471-00-00
Protector, Engine
|
4GV-F1471-00-00 |
— | ||
|
13
|
13
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
14
|
14
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
15
|
15
34L-21485-00-00 Damper, Rubber 1 |
34L-21485-00-00 |
from US $8.78 |
||
|
16
|
16
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
17
|
17
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
18
|
18
34L-21486-00-00 Damper 2 |
34L-21486-00-00 |
US $179.68 |
||
|
19
|
19
90267-48079-00 Rivet, Blind (4.8X16.1) |
90267-48079-00 |
from US $1.70 |
||
|
20
|
20
970-07060-20-00
Bolt
|
970-07060-20-00 |
— | ||
| replacement | |||||
|
20
|
20
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
21
|
21
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
22
|
22
90201-06765-00 Washer, Plate (1Hf) |
90201-06765-00 |
from US $1.28 |
||
| replacements | |||||
|
22
|
22
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
22
|
22
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
23
|
23
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.94 |
||
|
24
|
24
903-87060-A7-00
Collar
|
903-87060-A7-00 |
— | ||
| replacement | |||||
|
24
|
24
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
25
|
25
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
26
|
26
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
27
|
27
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
28
|
28
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
29
|
29
4GV-F1161-00-00
Holder, Cable
|
4GV-F1161-00-00 |
— | ||
|
30
|
30
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
30
|
30
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
31
|
31
958-07080-16-00
Bolt, Flange
|
958-07080-16-00 |
— | ||
| replacements | |||||
|
31
|
31
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
31
|
31
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
|
32
|
32
9131M-06012-00 Bolt |
9131M-06012-00 |
from US $1.35 |
||
|
33
|
33
9290M-06600-00 Washer |
9290M-06600-00 |
from US $0.29 |
||
|
34
|
34
5H0-21308-01-00 Helmet Hanger Assy |
5H0-21308-01-00 |
from US $59.13 |
||
|
35
|
35
90151-06025-00 Screw, Countersunk |
90151-06025-00 |
from US $1.98 |
||
|
36
|
36
9701L-08020-00
Bolt
|
9701L-08020-00 |
— | ||
|
37
|
37
90201-098E7-00
Washer, Plate
|
90201-098E7-00 |
— | ||
|
38
|
38
3SH-F4181-00-00
Damper, Locating 1
|
3SH-F4181-00-00 |
— | ||
|
39
|
39
4GV-F1105-00-UJ
Back Stay Sub Comp. 1
Ur radical white |
4GV-F1105-00-UJ |
— | ||
|
40
|
40
9701L-08016-00 Bolt, Hexagon |
9701L-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
40
|
40
970-17080-16-00 Bolt |
970-17080-16-00 |
from US $1.42 |
||
|
41
|
41
9290L-08100-00
Washer
|
9290L-08100-00 |
— | ||
|
42
|
42
90204-10803-00
Washer, Spring
|
90204-10803-00 |
— | ||
