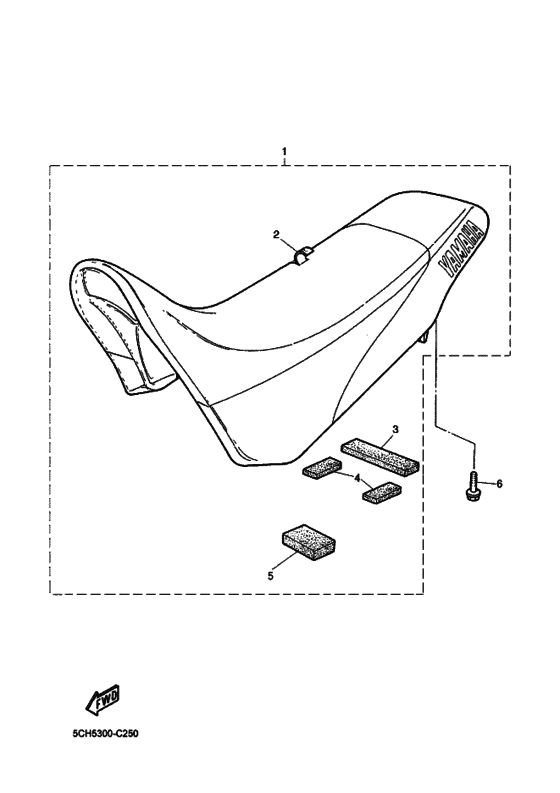

Seat Diagram Yamaha TT600
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5CH5
- Sales region
- Europe (050)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- TT600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5CH-F4770-30-00
Semi-Double Seat Assy
UR BLACK/DPBSE |
5CH-F4770-30-00 |
— | ||
|
2
|
2
5CH-F4731-30-00
Cover, Seat
UR |
5CH-F4731-30-00 |
— | ||
|
3
|
3
5CH-F4723-00-00
Damper, Seat
|
5CH-F4723-00-00 |
— | ||
|
4
|
4
5CH-F4724-00-00
Damper, Seat
|
5CH-F4724-00-00 |
— | ||
|
5
|
5
4SU-F8372-00-00
Damper
|
4SU-F8372-00-00 |
— | ||
|
6
|
6
9581L-06016-00 Bolt, Flange |
9581L-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
958-17060-16-00 Bolt, Flange |
958-17060-16-00 |
from US $1.18 |
||
