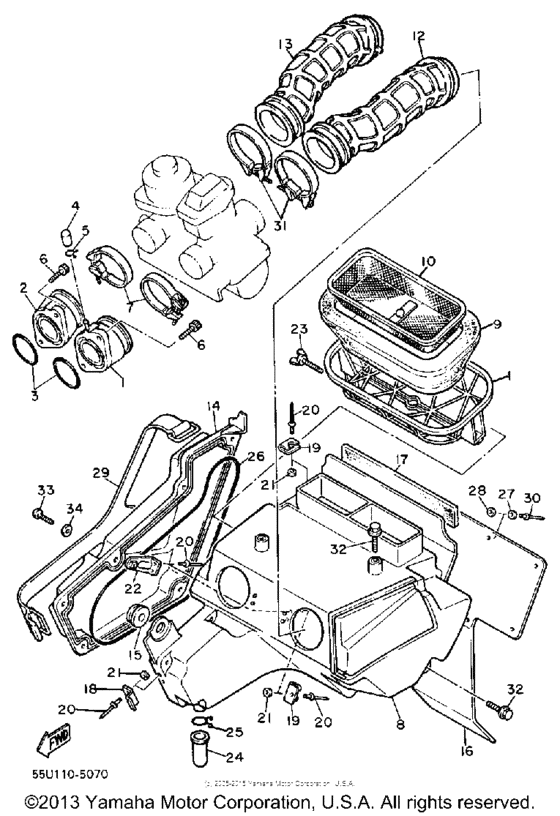

Air filter Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43F-13586-01-00 Joint, Carburetor 1 |
43F-13586-01-00 |
from US $86.56 |
||
|
2
|
2
43F-13596-01-00 Joint, Carburetor 2 |
43F-13596-01-00 |
from US $73.64 |
||
|
3
|
3
93210-36549-00 O-Ring |
93210-36549-00 |
from US $4.72 |
||
| replacement | |||||
|
3
|
3
93210-36769-00 O-Ring |
93210-36769-00 |
from US $4.72 |
||
|
4
|
4
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.36 |
||
|
5
|
5
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
6
|
6
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
7
|
7
90460-46206-00 Hose Clamp Assy |
90460-46206-00 |
from US $6.66 |
||
| replacement | |||||
|
7
|
7
904-50470-02-00 Hose Clamp Assy |
904-50470-02-00 |
from US $6.66 |
||
|
8
|
8
34K-14401-01-00
Air Clnr Case Assemblyassy
|
34K-14401-01-00 |
— | ||
|
9
|
9
34K-14451-01-00 Element, Air Clnr |
34K-14451-01-00 |
from US $30.60 |
||
| replacement | |||||
|
9
|
9
34K-14451-02-00 Element, Air Cleaner |
34K-14451-02-00 |
from US $28.22 |
||
|
10
|
10
34K-14458-02-00 Guide, Element |
34K-14458-02-00 |
US $34.08 |
||
|
11
|
11
34K-14473-02-00
Guide, Element
|
34K-14473-02-00 |
— | ||
|
12
|
12
43F-14453-00-00
Joint, Air Clnr 1
|
43F-14453-00-00 |
— | ||
|
13
|
13
43F-14454-00-00
Joint
|
43F-14454-00-00 |
— | ||
|
14
|
14
34K-14412-01-00 Cap, Cleaner Case 1 |
34K-14412-01-00 |
US $45 |
||
|
15
|
15
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
15
|
15
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.36 |
||
|
16
|
16
34K-21621-01-00
Flap
|
34K-21621-01-00 |
— | ||
|
17
|
17
34K-14426-00-00 Damper 2 |
34K-14426-00-00 |
US $8.10 |
||
|
18
|
18
26A-14436-00-00 Hook |
26A-14436-00-00 |
US $6.75 |
||
|
19
|
19
34K-14484-00-00 Plate, Cleaner Case Fitting |
34K-14484-00-00 |
US $8.03 |
||
|
20
|
20
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
20
|
20
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
21
|
21
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
22
|
22
34K-14493-01-00 Stay 1 |
34K-14493-01-00 |
US $12.49 |
||
|
23
|
23
90122-05010-00
Bolt, Wing
|
90122-05010-00 |
— | ||
|
24
|
24
1W4-14457-00-00
Seal
|
1W4-14457-00-00 |
— | ||
|
25
|
25
90467-20030-00 Clip |
90467-20030-00 |
US $3.83 |
||
| replacement | |||||
|
25
|
25
90467-20M15-00 Clip |
90467-20M15-00 |
from US $3.83 |
||
|
26
|
26
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $11.93 |
||
|
27
|
27
90201-047A2-00 Washer, Plate |
90201-047A2-00 |
from US $1.70 |
||
|
28
|
28
92990-04200-00 Washer |
92990-04200-00 |
from US $1.21 |
||
|
29
|
29
34K-14455-00-00
Band
|
34K-14455-00-00 |
— | ||
|
30
|
30
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
30
|
30
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
31
|
31
90460-51059-00 Clamp, Hose |
90460-51059-00 |
from US $7.65 |
||
|
32
|
32
958-11060-12-00
Bolt, Flange (4H7)
|
958-11060-12-00 |
— | ||
| replacements | |||||
|
32
|
32
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
32
|
32
95812-06012-00 Bolt, Flange |
95812-06012-00 |
from US $1.39 |
||
|
33
|
33
98586-05016-00 Screw, Pan Head |
98586-05016-00 |
from US $1.42 |
||
| replacement | |||||
|
33
|
33
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
34
|
34
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
