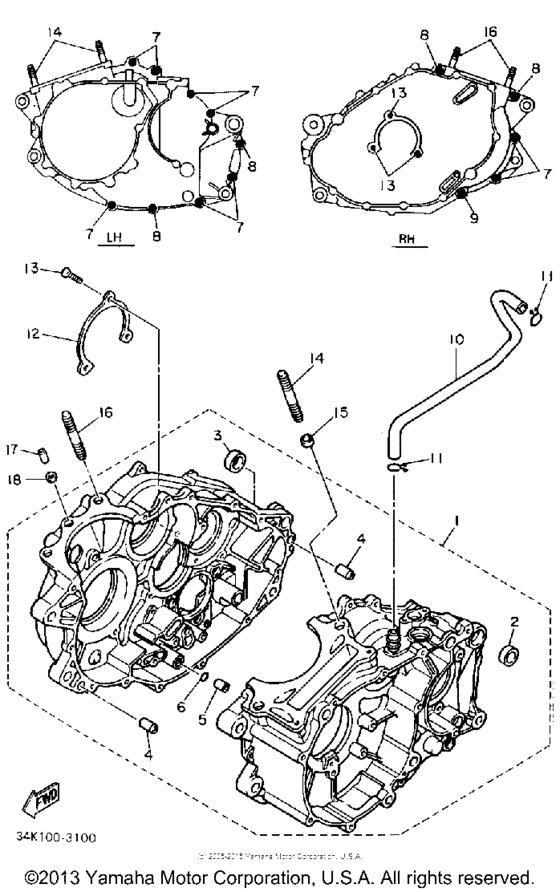

Crankcase Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34L-15100-05-00 Crankcase Assembly |
34L-15100-05-00 |
US $1,183.03 |
||
|
2
|
2
903-87177-83-00
Collar
|
903-87177-83-00 |
— | ||
| replacement | |||||
|
2
|
2
90387-17009-00 Collar |
90387-17009-00 |
from US $5.24 |
||
|
3
|
3
90387-16782-00 Collar |
90387-16782-00 |
from US $4.53 |
||
|
4
|
4
995-10120-16-00
Pin, Dowel
|
995-10120-16-00 |
— | ||
| replacement | |||||
|
4
|
4
99530-12016-00 Pin, Dowel |
99530-12016-00 |
from US $1.52 |
||
|
5
|
5
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
5
|
5
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
6
|
6
932-10071-35-00 O-Ring (Small) |
932-10071-35-00 |
from US $2.22 |
||
|
7
|
7
90110-06138-00 Bolt |
90110-06138-00 |
from US $1.25 |
||
|
8
|
8
91316-06045-00 Bolt |
91316-06045-00 |
from US $1.42 |
||
| replacements | |||||
|
8
|
8
901-1006X-81-00
Bolt, Hexagon Socket Head
|
901-1006X-81-00 |
— | ||
|
8
|
8
91317-06045-00 Bolt,socket |
91317-06045-00 |
from US $1.34 |
||
|
9
|
9
913-16060-60-00
Bolt
|
913-16060-60-00 |
— | ||
| replacement | |||||
|
9
|
9
91317-06060-00 Bolt |
91317-06060-00 |
from US $1.42 |
||
|
10
|
10
34L-11166-00-00
Pipe, Breather 1
|
34L-11166-00-00 |
— | ||
|
11
|
11
90467-14015-00 Clip |
90467-14015-00 |
from US $1.81 |
||
|
12
|
12
5Y1-15383-00-00
Plate, Bearing Cover
|
5Y1-15383-00-00 |
— | ||
|
13
|
13
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
14
|
14
90116-10087-00 Bolt, Stud |
90116-10087-00 |
from US $7.79 |
||
|
15
|
15
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.66 |
||
|
16
|
16
90116-10263-00 Bolt, Stud |
90116-10263-00 |
from US $10.20 |
||
|
17
|
17
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
17
|
17
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
18
|
18
90430-08178-00 Gasket |
90430-08178-00 |
from US $4.72 |
||
