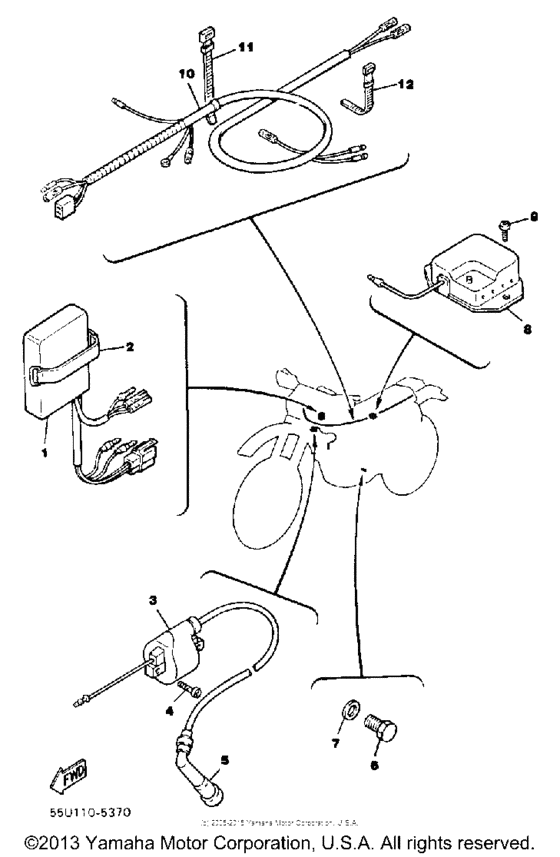

Electrical (1) Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-85540-51-00
Cdi Unit Assembly
|
55U-85540-51-00 |
— | ||
|
2
|
2
122-82131-00-00 Band, Battery |
122-82131-00-00 |
from US $9.73 |
||
| replacement | |||||
|
2
|
2
26L-82131-00-00 Band, Battery |
26L-82131-00-00 |
from US $9.78 |
||
|
3
|
3
43F-82310-51-00
Ignition Coil Assembly
|
43F-82310-51-00 |
— | ||
|
4
|
4
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.02 |
||
|
5
|
5
371-82370-00-00 Plug Cap Assy |
371-82370-00-00 |
from US $28.76 |
||
| replacement | |||||
|
5
|
5
4VW-82370-00-00 Plug Cap Assy |
4VW-82370-00-00 |
from US $32.74 |
||
|
6
|
6
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $3.12 |
||
|
7
|
7
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
8
|
8
82F-81910-A0-00 Voltage Regulator Assy |
82F-81910-A0-00 |
from US $42.69 |
||
| replacement | |||||
|
8
|
8
7XE-81910-00-00 Voltage Regulator As |
7XE-81910-00-00 |
from US $42.69 |
||
|
9
|
9
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
| replacement | |||||
|
9
|
9
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.56 |
||
|
10
|
10
55U-82590-00-00
Wire Harness Assembly
|
55U-82590-00-00 |
— | ||
|
11
|
11
25G-83936-01-00 Band, Switch Cord |
25G-83936-01-00 |
from US $1.56 |
||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
