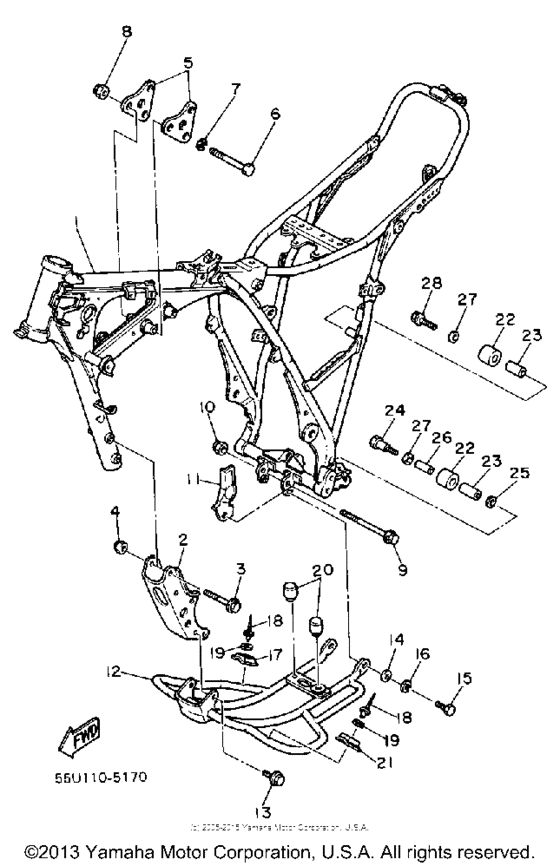

Frame Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-21110-00-FH
Frame
|
55U-21110-00-FH |
— | ||
|
2
|
2
34K-21316-00-FH
Stay, Engine 3
FIRE RED |
34K-21316-00-FH |
— | ||
|
3
|
3
90105-10286-00 Bolt, Flange |
90105-10286-00 |
from US $4.53 |
||
|
4
|
4
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
5
|
5
34K-21315-00-00
Stay, Engine 2
|
34K-21315-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
97011-10080-00 Bolt,washer Based |
97011-10080-00 |
from US $7.18 |
||
| replacement | |||||
|
6
|
6
90105-10M75-00 Bolt, Flange |
90105-10M75-00 |
from US $8.22 |
||
|
7
|
7
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
8
|
8
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
9
|
9
95811-10110-00 Bolt, Flange |
95811-10110-00 |
from US $3.54 |
||
| replacement | |||||
|
9
|
9
95817-10110-00 Bolt, Flange(6Ta) |
95817-10110-00 |
from US $3.54 |
||
|
10
|
10
90185-10060-00 Nut, Self-Locking |
90185-10060-00 |
from US $5.58 |
||
|
11
|
11
34K-2176E-00-00
Plate
|
34K-2176E-00-00 |
— | ||
|
12
|
12
34K-21471-00-FH
Protector, Engine
|
34K-21471-00-FH |
— | ||
|
13
|
13
95811-08012-00 Bolt, Flange (95801-08012-00) |
95811-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
14
|
14
90201-06778-00 Washer, Plate |
90201-06778-00 |
from US $1.70 |
||
|
15
|
15
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
16
|
16
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
17
|
17
34K-21485-00-00
Damper, Rubber 1
|
34K-21485-00-00 |
— | ||
|
18
|
18
90267-40075-00 Rivet, Blind |
90267-40075-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
902-67400-80-00
Rivet, Blind (5H0)
|
902-67400-80-00 |
— | ||
|
19
|
19
90201-044H9-00 Washer, Plate |
90201-044H9-00 |
from US $1.84 |
||
|
20
|
20
4N0-27114-00-00 Stopper, Main Stand |
4N0-27114-00-00 |
from US $4.53 |
||
|
21
|
21
34K-21486-00-00 Damper 2 |
34K-21486-00-00 |
from US $8.66 |
||
|
22
|
22
30X-22178-00-00 Tensioner |
30X-22178-00-00 |
from US $10.10 |
||
|
23
|
23
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.60 |
||
|
24
|
24
90109-08705-00 Bolt |
90109-08705-00 |
from US $10.13 |
||
|
25
|
25
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
25
|
25
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
26
|
26
90387-085E1-00 Collar |
90387-085E1-00 |
from US $2.91 |
||
|
27
|
27
90201-08753-00 Washer, Plate |
90201-08753-00 |
US $2.22 |
||
| replacement | |||||
|
27
|
27
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $2.22 |
||
|
28
|
28
95811-08016-00 Bolt, Flange |
95811-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
28
|
28
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
28
|
28
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
