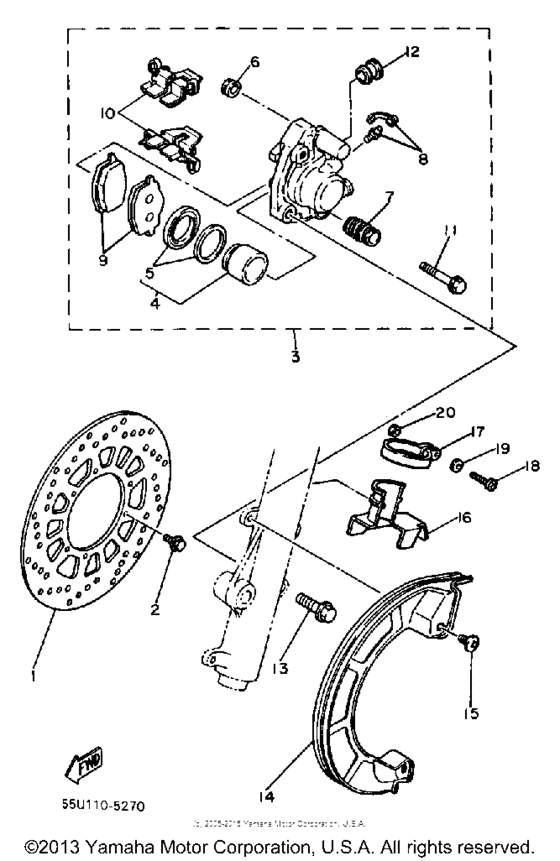

Front brake caliper Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-25831-00-00
Disc,brake
|
55U-25831-00-00 |
— | ||
| replacement | |||||
|
1
|
1
55U-2582T-00-00
Disc, Brake
|
55U-2582T-00-00 |
— | ||
|
2
|
2
901-09067-57-00
Bolt
|
901-09067-57-00 |
— | ||
| replacements | |||||
|
2
|
2
958-80060-16-00
Bolt, Flange
|
958-80060-16-00 |
— | ||
|
2
|
2
95814-06016-00 Bolt, Flange |
95814-06016-00 |
from US $1.35 |
||
|
3
|
3
55U-25810-10-00
Caliper Assembly
|
55U-25810-10-00 |
— | ||
|
4
|
4
34X-W0057-00-00 Piston Assy, Caliper |
34X-W0057-00-00 |
from US $94.23 |
||
|
5
|
5
34X-W0047-00-00 Caliper Seal Kit |
34X-W0047-00-00 |
from US $48.74 |
||
|
6
|
6
5R2-25937-00-00 Boot 2 |
5R2-25937-00-00 |
from US $21.50 |
||
|
7
|
7
34X-25937-00-00 Boot 2 |
34X-25937-00-00 |
from US $19.41 |
||
|
8
|
8
51L-W0048-00-00
Bleed Screw Kit
|
51L-W0048-00-00 |
— | ||
| replacement | |||||
|
8
|
8
15B-W0048-00-00 Bleed Screw Kit |
15B-W0048-00-00 |
from US $9.29 |
||
|
9
|
9
34X-W0046-00-00 Brake Pad Kit |
34X-W0046-00-00 |
from US $47.77 |
||
| replacement | |||||
|
9
|
9
34X-W0046-02-00 Brake Pad Kit |
34X-W0046-02-00 |
from US $54.95 |
||
|
10
|
10
34X-25919-00-00 Support, Pad |
34X-25919-00-00 |
from US $36.20 |
||
|
11
|
11
2GV-25926-00-00 Bolt |
2GV-25926-00-00 |
from US $6.10 |
||
| replacement | |||||
|
11
|
11
5KN-25926-01-00 Bolt |
5KN-25926-01-00 |
from US $8.78 |
||
|
12
|
12
34X-25845-00-00 Cap, Indicator |
34X-25845-00-00 |
from US $7.23 |
||
|
13
|
13
55U-25818-00-00 Bolt, Flange |
55U-25818-00-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
95814-08030-00 Bolt, Flange |
95814-08030-00 |
from US $1.66 |
||
|
14
|
14
55U-25715-00-00 Cover 1 |
55U-25715-00-00 |
US $136.61 |
||
|
15
|
15
90149-06194-00 Screw |
90149-06194-00 |
from US $3.14 |
||
| replacement | |||||
|
15
|
15
90111-06806-00
Bolt
|
90111-06806-00 |
— | ||
|
16
|
16
55U-25716-00-00 Cover 2 |
55U-25716-00-00 |
from US $7.18 |
||
|
17
|
17
55U-25719-00-00
Band
|
55U-25719-00-00 |
— | ||
|
18
|
18
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
18
|
18
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
19
|
19
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
19
|
19
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
