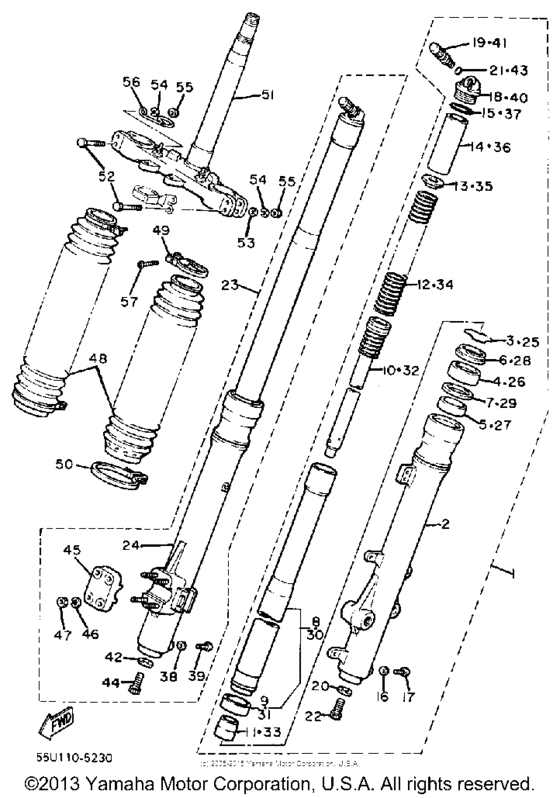

Front fork Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-23102-00-00
Front Fork Assembly L
|
55U-23102-00-00 |
— | ||
|
2
|
2
55U-23126-00-00
Tube, Outer 1
CLEAR BUFFING |
55U-23126-00-00 |
— | ||
|
3
|
3
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
4
|
4
23X-23145-L0-00 Oil Seal |
23X-23145-L0-00 |
from US $31.31 |
||
|
5
|
5
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
5
|
5
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
6
|
6
23X-23144-L0-00 Seal, Dust |
23X-23144-L0-00 |
from US $25.93 |
||
|
7
|
7
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
8
|
8
55U-23110-00-00
Inner Tube Comp
|
55U-23110-00-00 |
— | ||
|
9
|
9
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
10
|
10
55U-23170-00-00
Cylinder, Frt Fork
|
55U-23170-00-00 |
— | ||
|
11
|
11
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
12
|
12
55U-23141-00-00
Spring, Front Fork
|
55U-23141-00-00 |
— | ||
|
13
|
13
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
14
|
14
5X6-23118-M0-00
Spacer
|
5X6-23118-M0-00 |
— | ||
|
15
|
15
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
16
|
16
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
17
|
17
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
17
|
17
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
18
|
18
43M-23111-L0-00
Bolt, Cap
|
43M-23111-L0-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
20
|
20
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
21
|
21
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
22
|
22
34K-23181-00-00
Bolt, Hex Sckt Headsocket Hea
|
34K-23181-00-00 |
— | ||
|
23
|
23
55U-23103-00-00
Front Fork Assembly R (R.h)
|
55U-23103-00-00 |
— | ||
|
24
|
24
55U-23136-00-38
Tube, Outer Rh
RH CLEAR BUFFING |
55U-23136-00-38 |
— | ||
|
25
|
25
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
26
|
26
23X-23145-L0-00 Oil Seal |
23X-23145-L0-00 |
from US $31.31 |
||
|
27
|
27
3XJ-23125-L0-00
Metal, Slide 1
|
3XJ-23125-L0-00 |
— | ||
| replacement | |||||
|
27
|
27
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $20.67 |
||
|
28
|
28
23X-23144-L0-00 Seal, Dust |
23X-23144-L0-00 |
from US $25.93 |
||
|
29
|
29
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
30
|
30
55U-23110-00-00
Inner Tube Comp
|
55U-23110-00-00 |
— | ||
|
31
|
31
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
32
|
32
55U-23170-00-00
Cylinder, Frt Fork
|
55U-23170-00-00 |
— | ||
|
33
|
33
4V4-23173-L0-00 Spindle, Taper |
4V4-23173-L0-00 |
from US $30.37 |
||
|
34
|
34
55U-23141-00-00
Spring, Front Fork
|
55U-23141-00-00 |
— | ||
|
35
|
35
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
36
|
36
5X6-23118-M0-00
Spacer
|
5X6-23118-M0-00 |
— | ||
|
37
|
37
4V4-23158-L0-00 Gasket |
4V4-23158-L0-00 |
from US $7.65 |
||
|
38
|
38
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
39
|
39
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
39
|
39
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
39
|
39
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
40
|
40
43M-23111-L0-00
Bolt, Cap
|
43M-23111-L0-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
41
|
41
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
42
|
42
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
43
|
43
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
44
|
44
34K-23181-00-00
Bolt, Hex Sckt Headsocket Hea
|
34K-23181-00-00 |
— | ||
|
45
|
45
43M-23167-L0-00
Holder, Axle
|
43M-23167-L0-00 |
— | ||
| replacement | |||||
|
45
|
45
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
46
|
46
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
47
|
47
95311-06600-00 Nut |
95311-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
47
|
47
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
48
|
48
55U-23191-00-00
Boot
|
55U-23191-00-00 |
— | ||
|
49
|
49
43M-23192-L0-00 Band |
43M-23192-L0-00 |
from US $5.40 |
||
|
50
|
50
3LD-23489-00-00 Band |
3LD-23489-00-00 |
from US $16.86 |
||
|
51
|
51
34K-23340-00-39
Under Bracketcomp (26A-23340-L0
26A-23340-L0 CLEAR NO BUFFING |
34K-23340-00-39 |
— | ||
|
52
|
52
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
53
|
53
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
53
|
53
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
54
|
54
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
55
|
55
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
55
|
55
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
56
|
56
4V5-23389-00-00 Guide, Cable |
4V5-23389-00-00 |
from US $10.63 |
||
|
57
|
57
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
57
|
57
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
