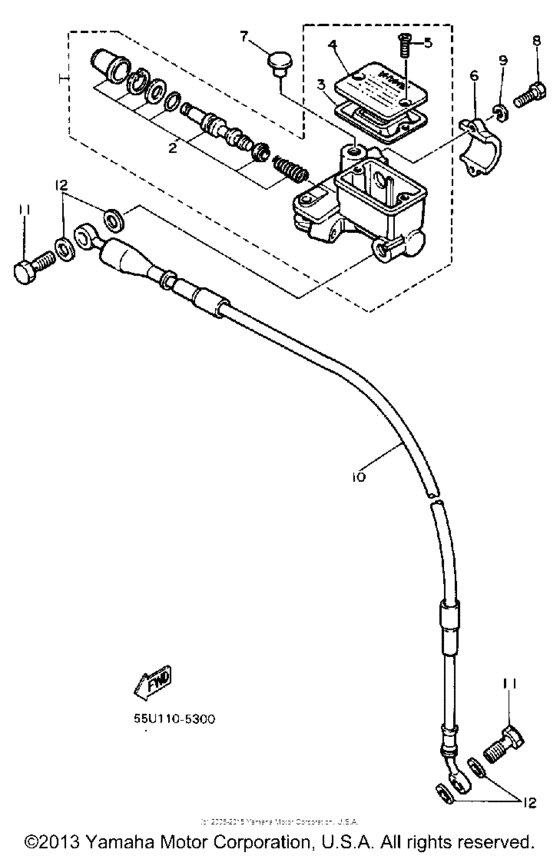

Front master cylinder Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55U-25850-00-00 Mstr.cylinder.sub.assembly.asse |
55U-25850-00-00 |
from US $236.65 |
||
| replacement | |||||
|
1
|
1
3AX-25870-00-00 Mstr.cylinder.sub.assembly.asse |
3AX-25870-00-00 |
US $236.65 |
||
|
2
|
2
56A-W0041-00-00 Cylinder Kit, Master |
56A-W0041-00-00 |
from US $58.86 |
||
|
3
|
3
55U-25854-00-00 Gasket, Diaphragm |
55U-25854-00-00 |
from US $11.66 |
||
|
4
|
4
2KF-25852-01-00 Cap, Reservoir (Fron |
2KF-25852-01-00 |
from US $25.27 |
||
| replacement | |||||
|
4
|
4
2KF-25852-02-00 Cap, Reservoir (Front) |
2KF-25852-02-00 |
from US $25.27 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
56A-25867-00-00 Bracket, Master Cylinder |
56A-25867-00-00 |
from US $13.46 |
||
|
7
|
7
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
|
8
|
8
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
55U-25872-00-00
Hose, Brake 1
|
55U-25872-00-00 |
— | ||
|
11
|
11
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
11
|
11
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
12
|
12
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
12
|
12
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
