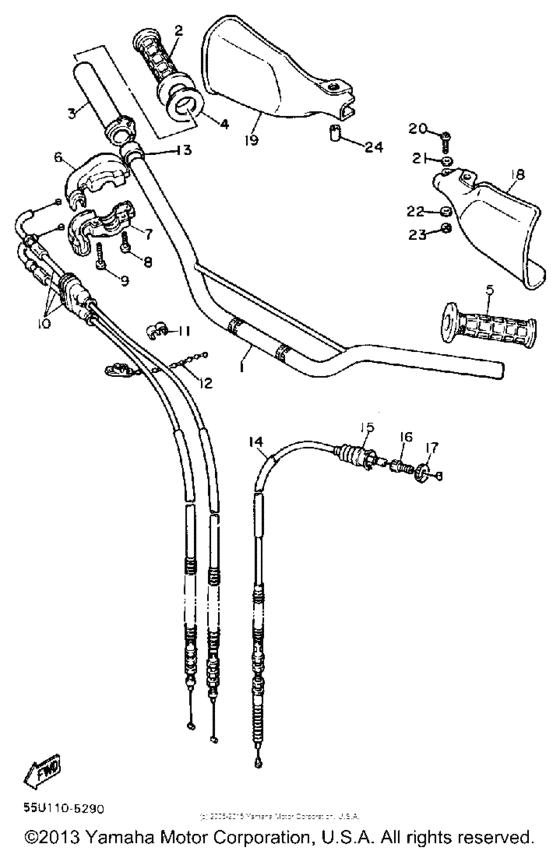

Handlebar-cable Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34K-26111-00-00 Handlebar |
34K-26111-00-00 |
from US $111.91 |
||
|
2
|
2
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
3
|
3
3Y1-26243-01-00 Tube,throttle Guide |
3Y1-26243-01-00 |
from US $21.39 |
||
| replacement | |||||
|
3
|
3
1RF-26243-00-00 Tube, Throttle Guide |
1RF-26243-00-00 |
from US $19.84 |
||
|
4
|
4
3Y1-26249-00-00 Ring, Leaf |
3Y1-26249-00-00 |
from US $3.59 |
||
|
5
|
5
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
6
|
6
34K-26281-00-00 Cap, Grip Upper |
34K-26281-00-00 |
from US $23.94 |
||
|
7
|
7
1VJ-26282-00-00 Cap, Grip Under |
1VJ-26282-00-00 |
from US $23.80 |
||
|
8
|
8
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
8
|
8
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
9
|
9
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
9
|
9
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
9
|
9
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
10
|
10
34K-26302-00-00
Throttle Cable Assemblyassy
|
34K-26302-00-00 |
— | ||
|
11
|
11
90468-15009-00 Clip |
90468-15009-00 |
from US $2.69 |
||
|
12
|
12
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
|
13
|
13
90387-227H7-00 Collar |
90387-227H7-00 |
from US $1.70 |
||
|
14
|
14
55U-26335-01-00 Cable, clutch |
55U-26335-01-00 |
from US $50.29 |
||
|
15
|
15
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
16
|
16
90123-08090-00 Bolt |
90123-08090-00 |
from US $12.75 |
||
|
17
|
17
90179-08401-00
Nut
|
90179-08401-00 |
— | ||
| replacements | |||||
|
17
|
17
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
17
|
17
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
18
|
18
3Y0-26141-00-00
Guard, Brush 1
CLEAN WHITE |
3Y0-26141-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
CLEAN WHITE |
999-99999-99-00 |
— | ||
|
19
|
19
34L-26142-10-00
Xt600L Bush Gd Rh
GD RH CLEAN WHITE |
34L-26142-10-00 |
— | ||
|
20
|
20
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
20
|
20
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
21
|
21
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
22
|
22
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
23
|
23
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
23
|
23
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
24
|
24
90387-06500-00 Collar |
90387-06500-00 |
from US $2.39 |
||
