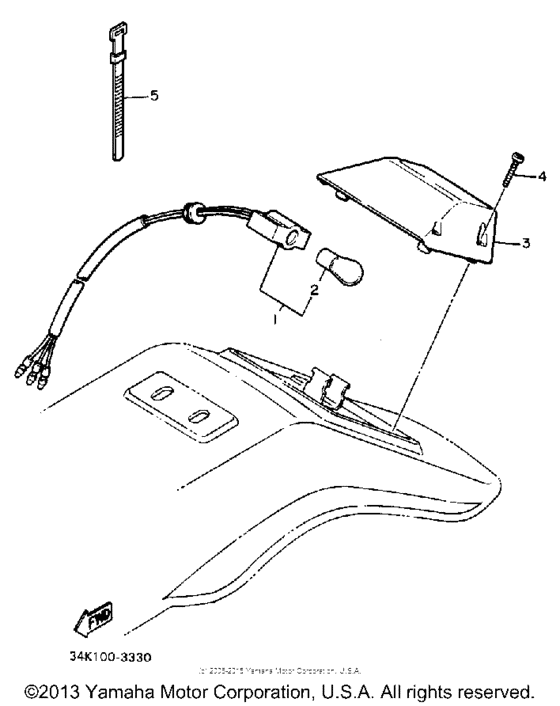

Taillight Diagram Yamaha TT600
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 600
- Model
- TT600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-84536-00-00
Socket Cord Assembly
|
4V5-84536-00-00 |
— | ||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
12V-21/5W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
12V-21/5W |
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W)12V-21/5W |
137-84714-61-00 |
US $5.13 |
||
|
3
|
3
26A-84521-00-00 Lens, Taillight |
26A-84521-00-00 |
from US $27.63 |
||
|
4
|
4
985-11040-20-00
Screw, Pan Head
|
985-11040-20-00 |
— | ||
| replacement | |||||
|
4
|
4
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
