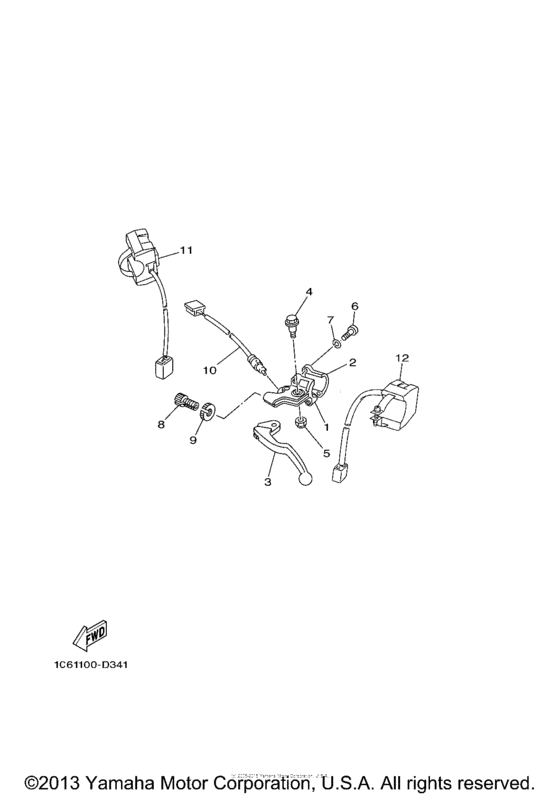

Handle switch & lever Diagram Yamaha TTR230 TT-R230
- Year
- 2012
- Colour
- Deep Purplish Blue Solid E (DPBSE)
- Sales region
- USA (010)
- Базовая модель
- TTR230B
- Engine Capacity
- 230
- Color Variant
- A
- Model
- TTR230
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2TY-H2911-00-00 Holder, Lever 1 |
2TY-H2911-00-00 |
from US $22.39 |
||
|
2
|
2
1B2-H2913-00-00 Holder, Lever Lower 1 |
1B2-H2913-00-00 |
from US $6.16 |
||
|
3
|
3
1B2-H3912-00-00 Lever 1 |
1B2-H3912-00-00 |
from US $23.58 |
||
| replacement | |||||
|
3
|
3
4GY-83912-00-00 Lever 1 |
4GY-83912-00-00 |
from US $23.58 |
||
|
4
|
4
4LR-H3945-00-00 Bolt, Lever |
4LR-H3945-00-00 |
from US $2.50 |
||
|
5
|
5
90185-06W10-00 Nut, Self-Locking |
90185-06W10-00 |
from US $0.88 |
||
| replacement | |||||
|
5
|
5
901-85068-02-00 Nut, Self-Locking |
901-85068-02-00 |
from US $1.25 |
||
|
6
|
6
9851M-05020-00 Screw, Pan Head |
9851M-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
6
|
6
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
7
|
7
9290M-05100-00 Washer, Spring |
9290M-05100-00 |
from US $1.56 |
||
| replacements | |||||
|
7
|
7
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
7
|
7
929-06051-00-09 Washer, Spring |
929-06051-00-09 |
US $5.29 |
||
|
8
|
8
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
8
|
8
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
9
|
9
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
9
|
9
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
10
|
10
5TJ-82917-02-00 Switch |
5TJ-82917-02-00 |
from US $27.63 |
||
|
11
|
11
5TJ-83976-13-00 Switch, Handle 1 |
5TJ-83976-13-00 |
from US $52.09 |
||
|
12
|
12
5UM-83976-E2-00 Switch, Engine Stop |
5UM-83976-E2-00 |
from US $57.44 |
||
