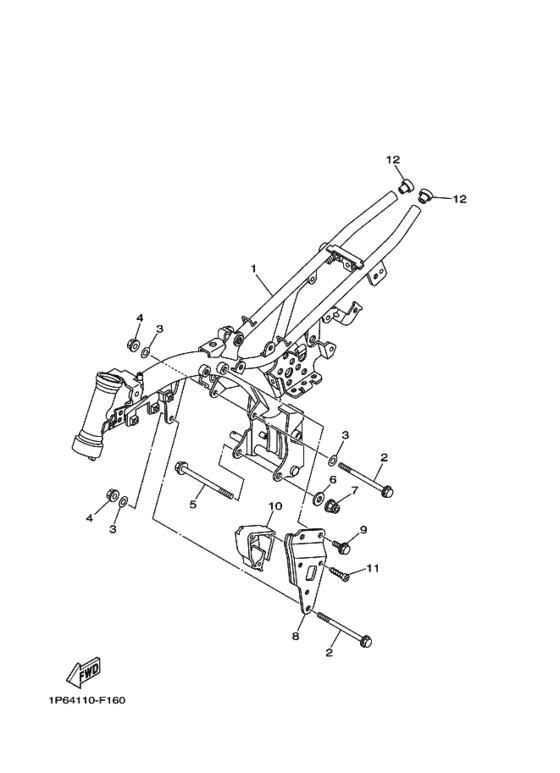

Frame Diagram Yamaha TTR50 TT-R50
- Year
- 2008
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 1P6B
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- TTR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1P6-F1110-20-00 Frame Comp．ＦＲＡＭＥ ＣＯＭＰ; |
1P6-F1110-20-00 |
from US $423.59 |
||
|
2
|
2
90105-08097-00 Bolt, Washer BasedＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-08097-00 |
from US $3.68 |
||
|
3
|
3
92907-08200-00 WasherＷＡＳＨＥＲ; |
92907-08200-00 |
from US $1.36 |
||
|
4
|
4
95607-08200-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
4
|
4
901-85081-69-00 Nut, Self-LockingＮＵＴ， ＳＥＬＦ−ＬＯＣＫＩＮＧ; |
901-85081-69-00 |
from US $2.35 |
||
|
5
|
5
90105-10123-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
90105-10123-00 |
from US $4.68 |
||
|
6
|
6
92907-10200-00 Washer, PlainＷＡＳＨＥＲ， ＰＬＡＩＮ; |
92907-10200-00 |
from US $0.90 |
||
|
7
|
7
956-07102-00-00 Nut, U FlangeＮＵＴ， Ｕ ＦＬＡＮＧＥ; |
956-07102-00-00 |
from US $5.69 |
||
|
8
|
8
1P6-F1387-00-00 Stay, Engine 7ＳＴＡＹ， ＥＮＧＩＮＥ ７; |
1P6-F1387-00-00 |
from US $15.43 |
||
| replacement | |||||
|
8
|
8
1P6-F1387-01-00 Stay, Engine 7ＳＴＡＹ， ＥＮＧＩＮＥ ７; |
1P6-F1387-01-00 |
from US $16.72 |
||
|
9
|
9
9581N-08016-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
9581N-08016-00 |
from US $1.07 |
||
| replacements | |||||
|
9
|
9
901-0508X-15-00
Blt,hex,1/4-20X5/8
ＢＯＬＴ， ＦＬＡＮＧＥ; |
901-0508X-15-00 |
— | ||
|
9
|
9
958-17080-16-00 Bolt, FlangeＢＯＬＴ， ＦＬＡＮＧＥ; |
958-17080-16-00 |
from US $1.18 |
||
|
10
|
10
1P6-F117F-00-00 CoverＣＯＶＥＲ; |
1P6-F117F-00-00 |
from US $7.19 |
||
|
11
|
11
97707-50516-00 Screw, TappingＳＣＲＥＷ， ＴＡＰＰＩＮＧ; |
97707-50516-00 |
from US $1.04 |
||
|
12
|
12
90338-16802-00 PlugＰＬＵＧ; |
90338-16802-00 |
from US $3.68 |
||
