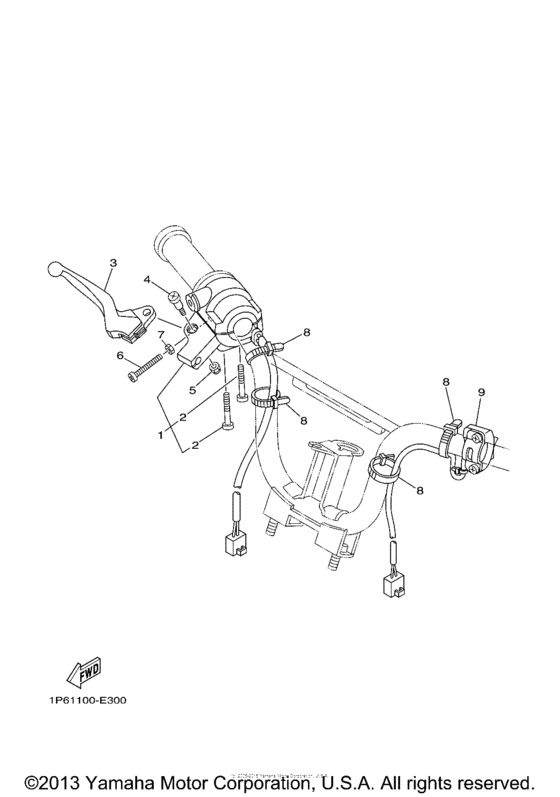

Handle switch & lever Diagram Yamaha TTR50 TT-R50
- Year
- 2006
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Sales region
- USA
- Engine Capacity
- 50
- Color Variant
- A
- Model
- TTR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1P6-8259E-00-00 Switch Assy |
1P6-8259E-00-00 |
from US $127.25 |
||
| replacement | |||||
|
1
|
1
1P6-8259E-02-00 Switch Assy |
1P6-8259E-02-00 |
from US $92.93 |
||
|
2
|
2
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
3
|
3
1P6-H3922-00-00 Lever 2 |
1P6-H3922-00-00 |
from US $12.61 |
||
|
4
|
4
90157-05801-00 Screw, Pan Head |
90157-05801-00 |
from US $3.26 |
||
|
5
|
5
9560N-05100-00 Nut, U |
9560N-05100-00 |
from US $1.98 |
||
| replacement | |||||
|
5
|
5
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
6
|
6
90157-05803-00 Screw, Pan Head |
90157-05803-00 |
from US $1.70 |
||
|
7
|
7
9530N-05700-00 Nut |
9530N-05700-00 |
from US $2.83 |
||
| replacement | |||||
|
7
|
7
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.65 |
||
|
8
|
8
4TU-H3936-00-00 Band, Switch Cord |
4TU-H3936-00-00 |
from US $1.56 |
||
| replacement | |||||
|
8
|
8
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
9
|
9
1P6-H3976-00-00 Switch, Handle 1 |
1P6-H3976-00-00 |
from US $51.53 |
||
| replacement | |||||
|
9
|
9
1P6-H3976-11-00 Switch, Handle 1 |
1P6-H3976-11-00 |
from US $51.53 |
||
